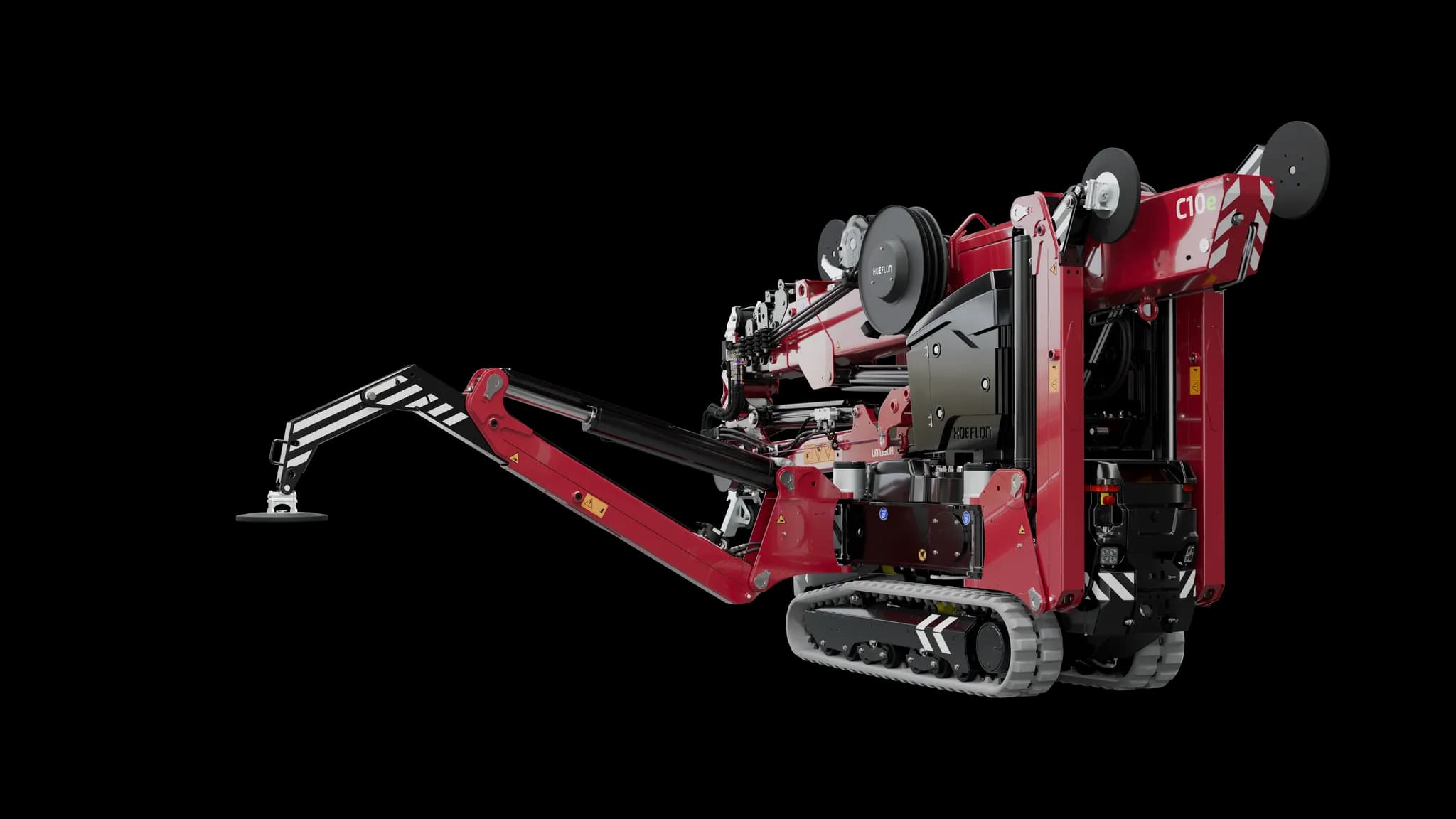

Hoeflon C10e Gen 3
The new generation C10e
4000 kg

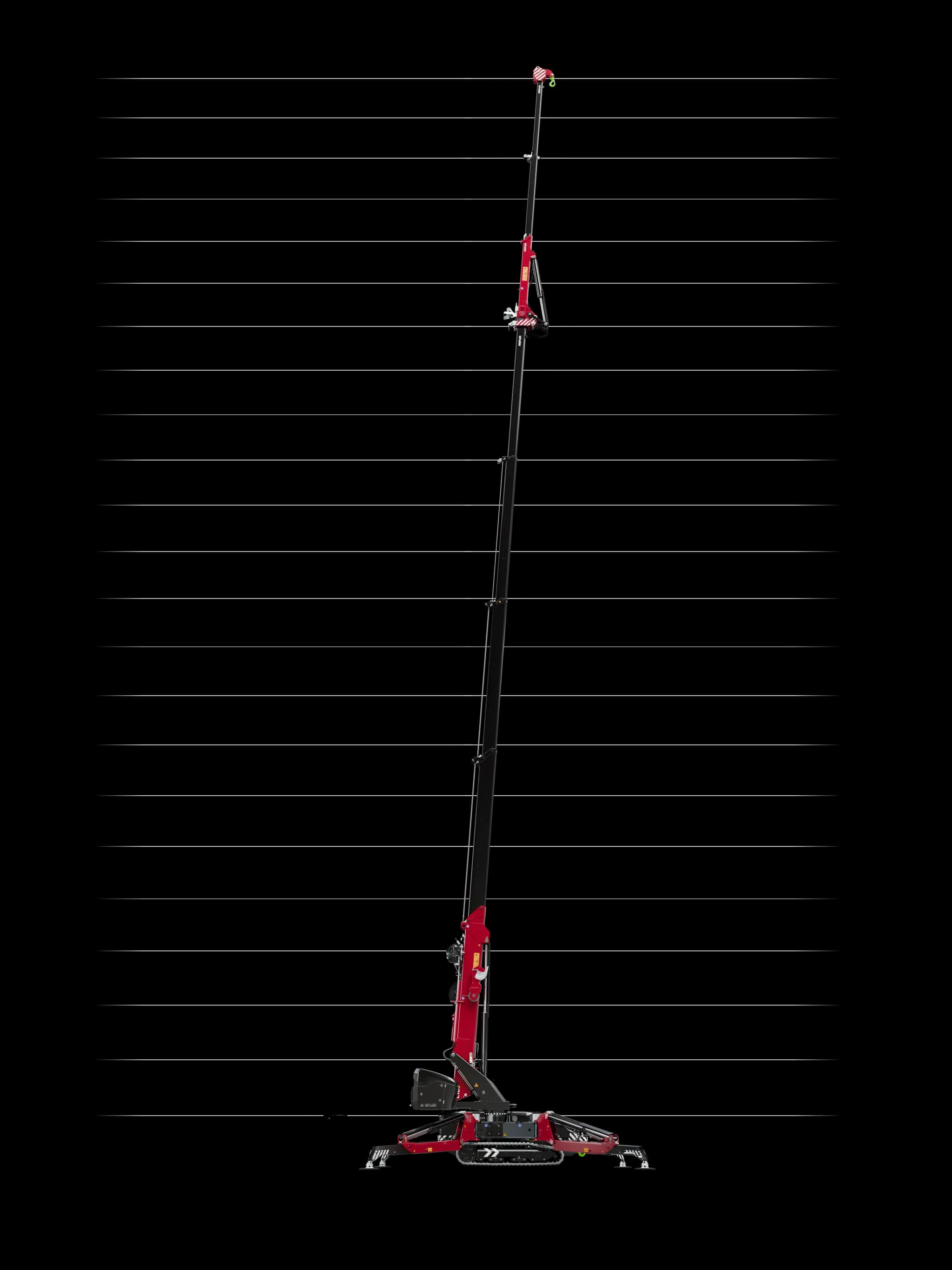

22 m
4700 kg
Specifications
Why the Hoeflon C10e?

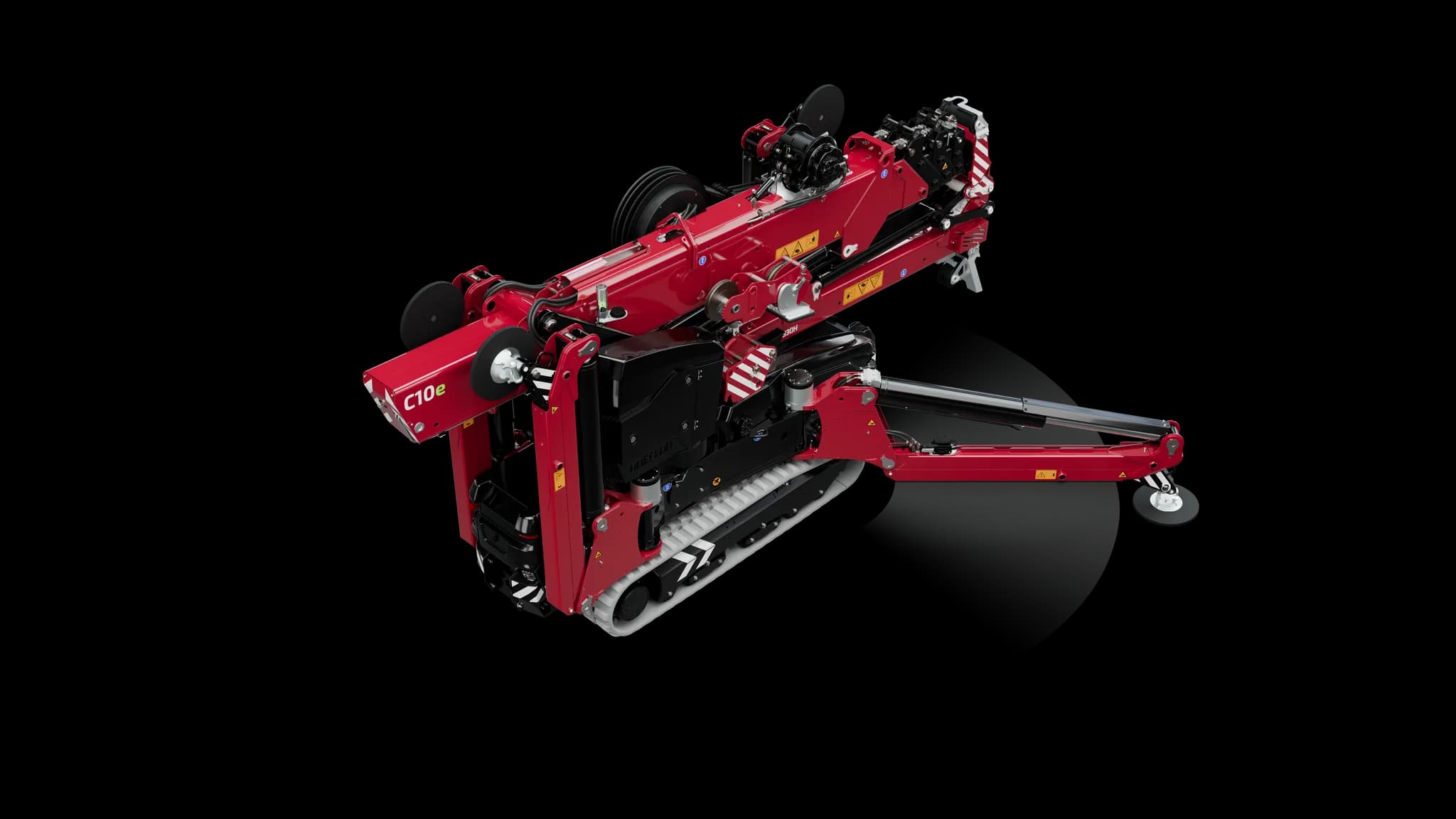

- Ready for the job or transport in no time
- Smart load control for optimal performance
- Real-time feedback for the operator
- Advanced outrigger technology
- Pick & carry up to 750 kg
Work accurately
Smart technology

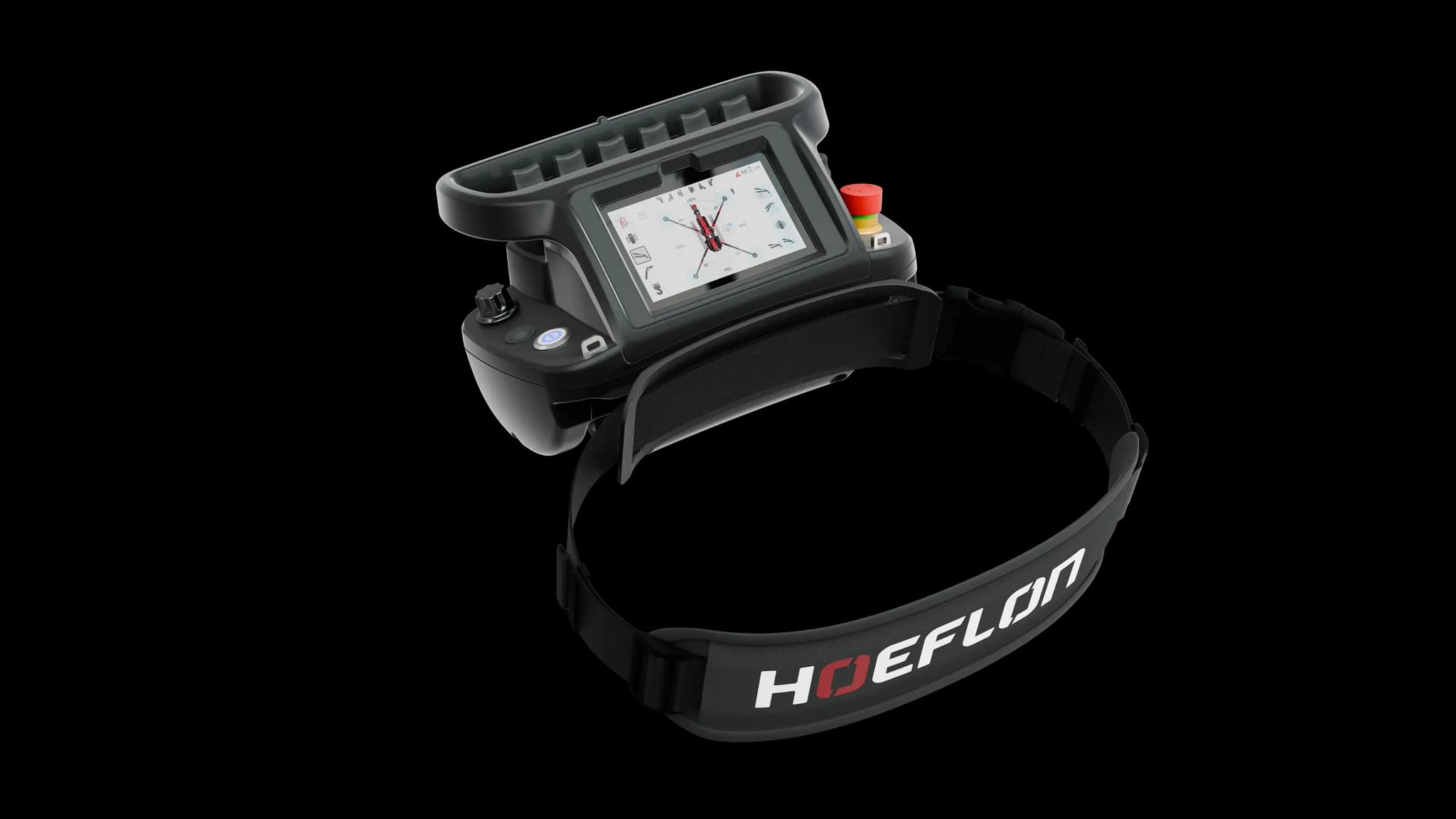

The C10e offers maximum control and precision thanks to smart technology and the Gen 3 RCL (Rated Capacity Limiter). This provides the operator with continuous real-time insight into the available lifting capacity, ensuring that every movement can be utilized optimally.
Through dynamic calculations, the crane adapts immediately to the situation. The RCL continuously monitors the limits and ensures that the maximum lifting capacity is utilized safely, whether on tracks or under varying loads and configurations.
The result is a perfect balance between power and safety: the operator can work with confidence, while the crane actively anticipates and supports for maximum efficiency and accuracy.

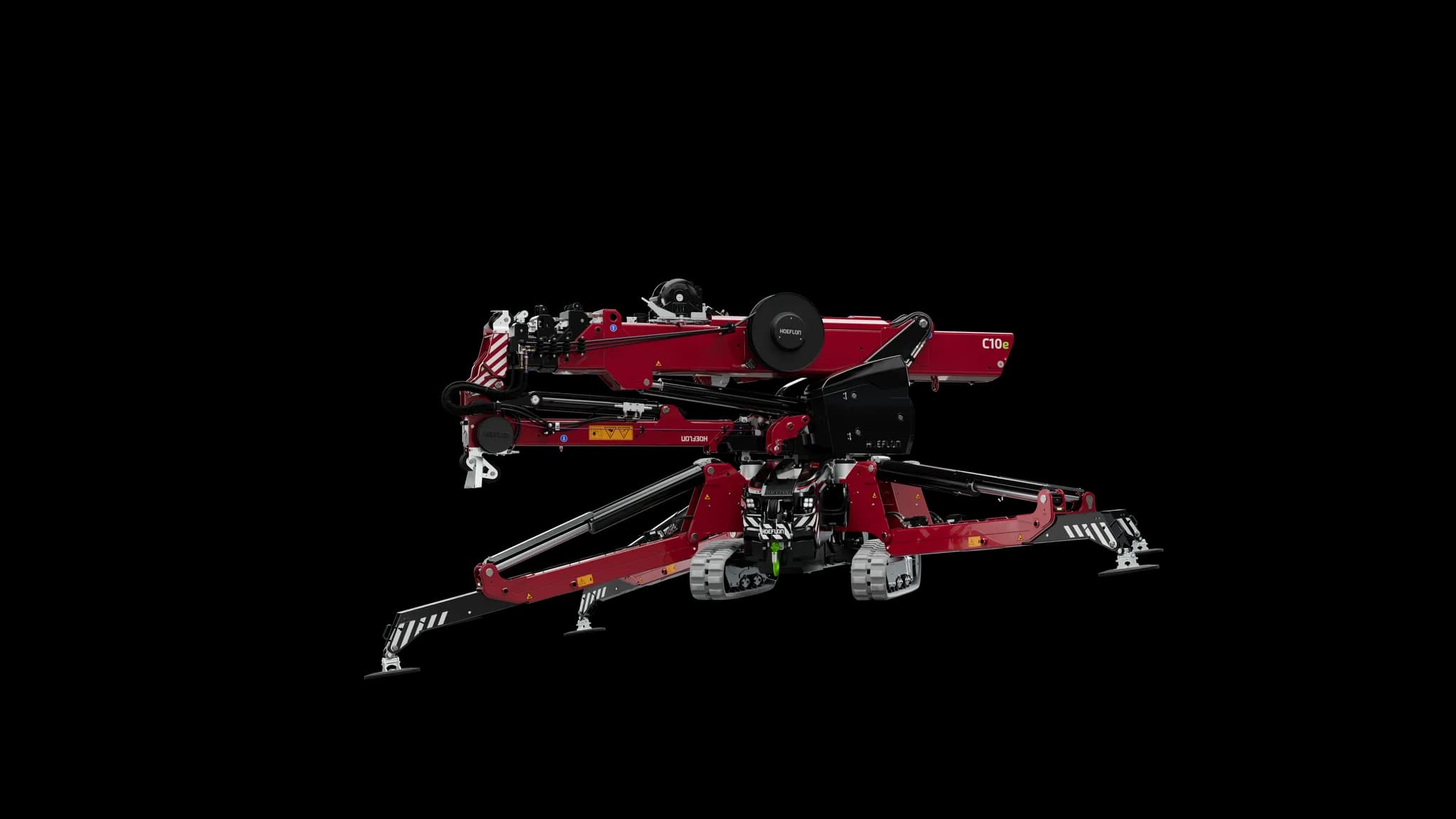

Quickly deployable
Automatic unfolding and leveling
The outriggers of the C10e automatically extend and level, allowing the minicrane to stand in the correct position quickly and easily. This ensures a fast setup and a stable base, so you can get to work immediately.
Flexible positioning
Hydraulically extendable and adjustable legs
The outriggers of the C10e are infinitely adjustable from 0 to 90°, allowing you to always position them in the optimal position for any working environment. In combination with the hydraulically extendable function, this ensures that the crane can be set up quickly and perfectly in any situation and that maximum capacity is utilized.
Bridge obstacles and differences in elevation
Folding legs
The C10e is equipped with outriggers that are standard positioned low to the ground and can be extended under obstacles. If you want to stabilize over an obstacle, you can simply use the folding leg. This feature is also ideal for use on uneven terrain.
Maximum capacity

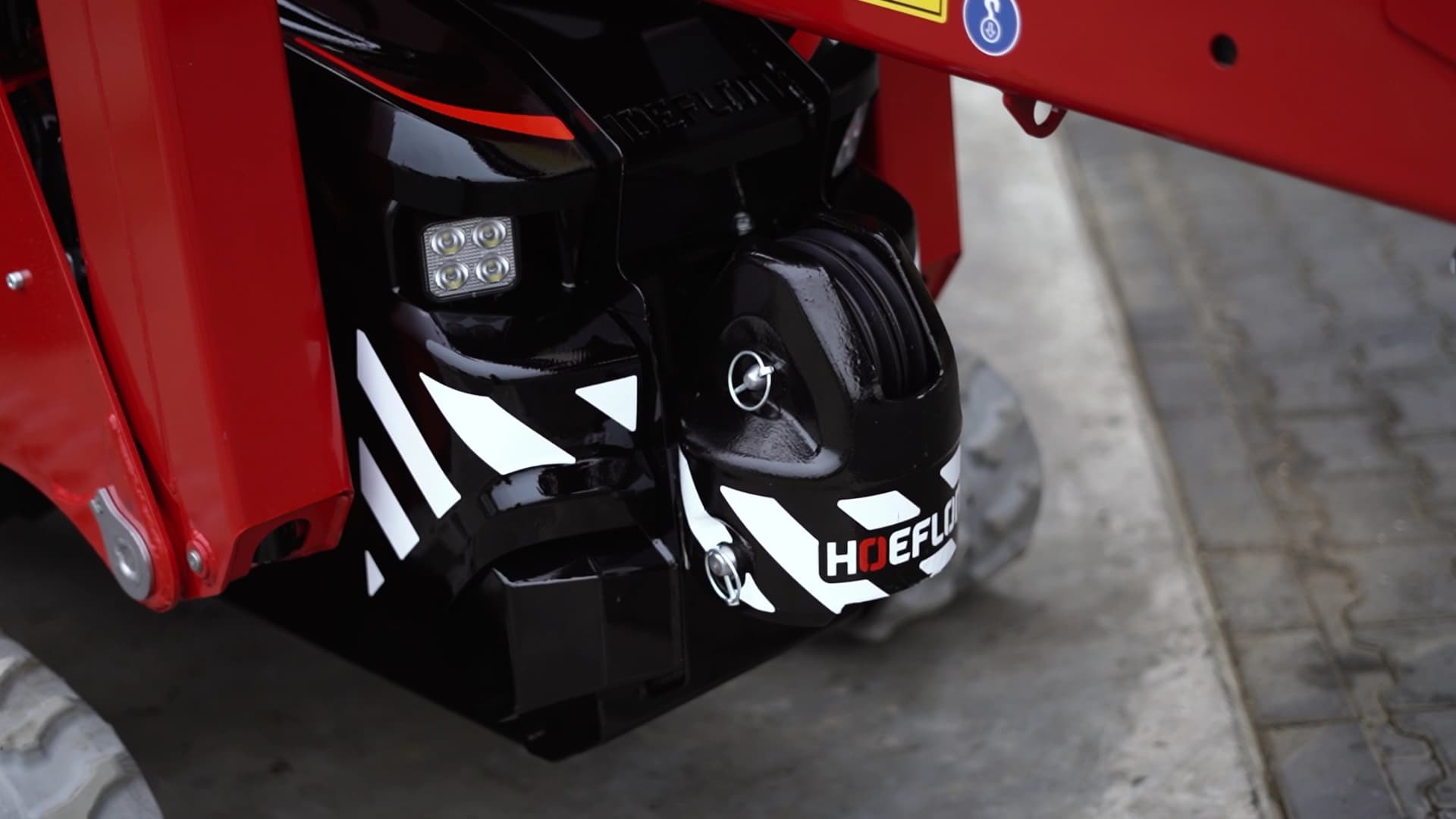

Retractable ballast

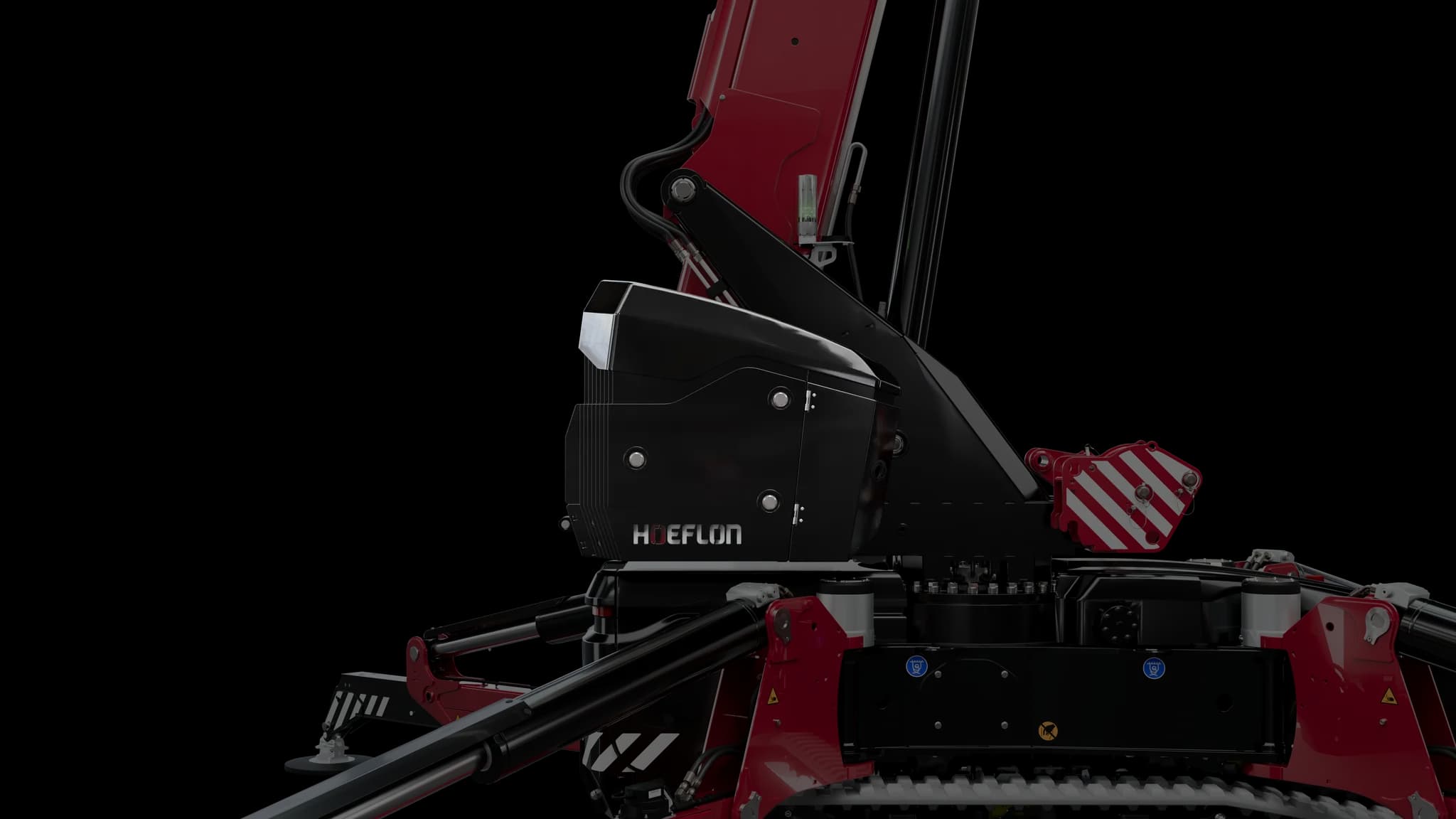

The counterweight of the C10e is hydraulically extendable and can be locked in any desired position. Extending the counterweight immediately increases the lifting capacity. The integrated system automatically recognizes the position of the counterweight and adjusts the calculations accordingly.
Reduce weight
Removable counterweight and jib

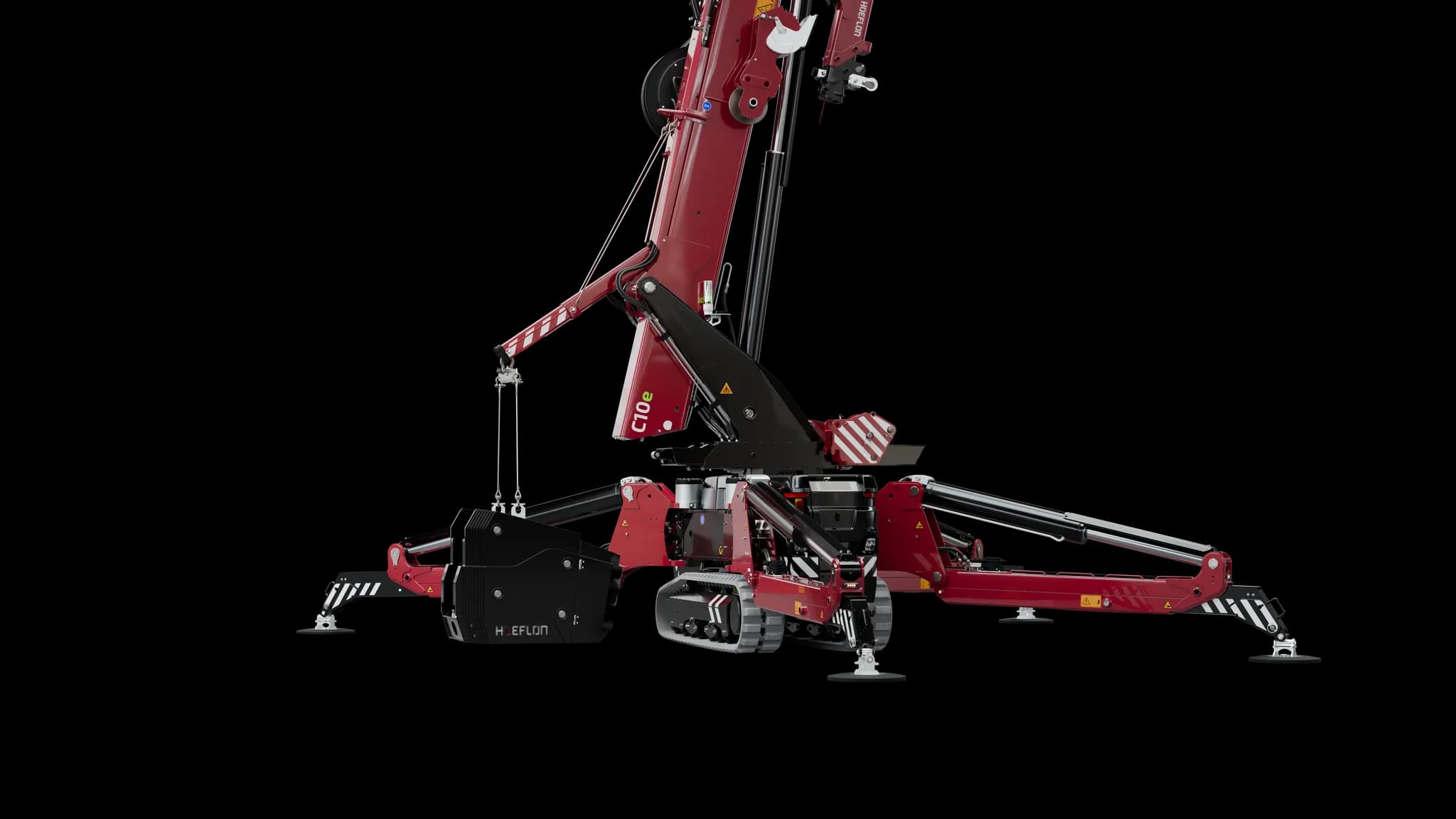

The counterweight of the C10e is removable, making it possible to significantly reduce the weight of the crane. By also removing the jib, the crane's own weight can even be reduced to 3720 kg.
Easy to switch

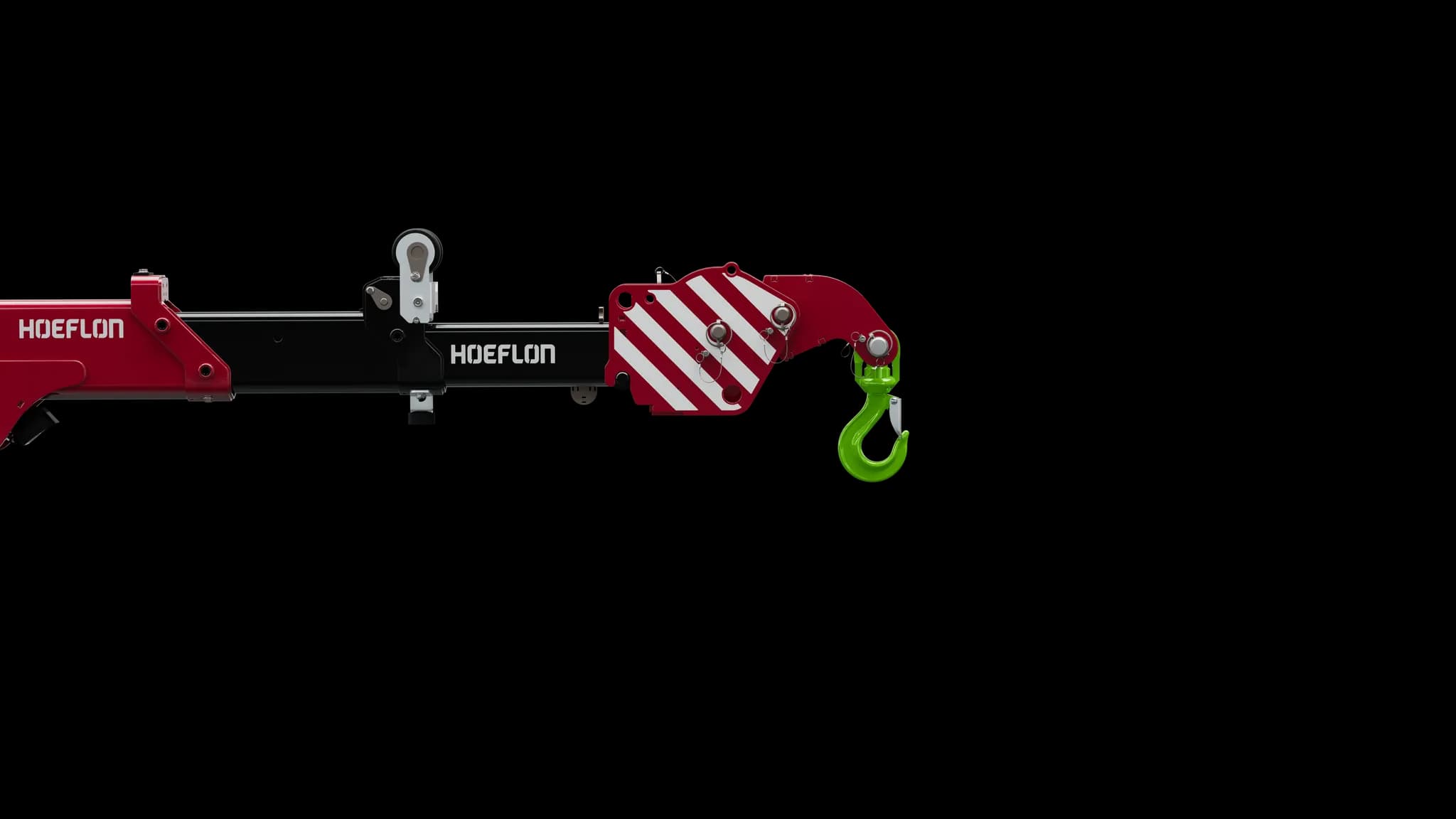

Versatile jib system

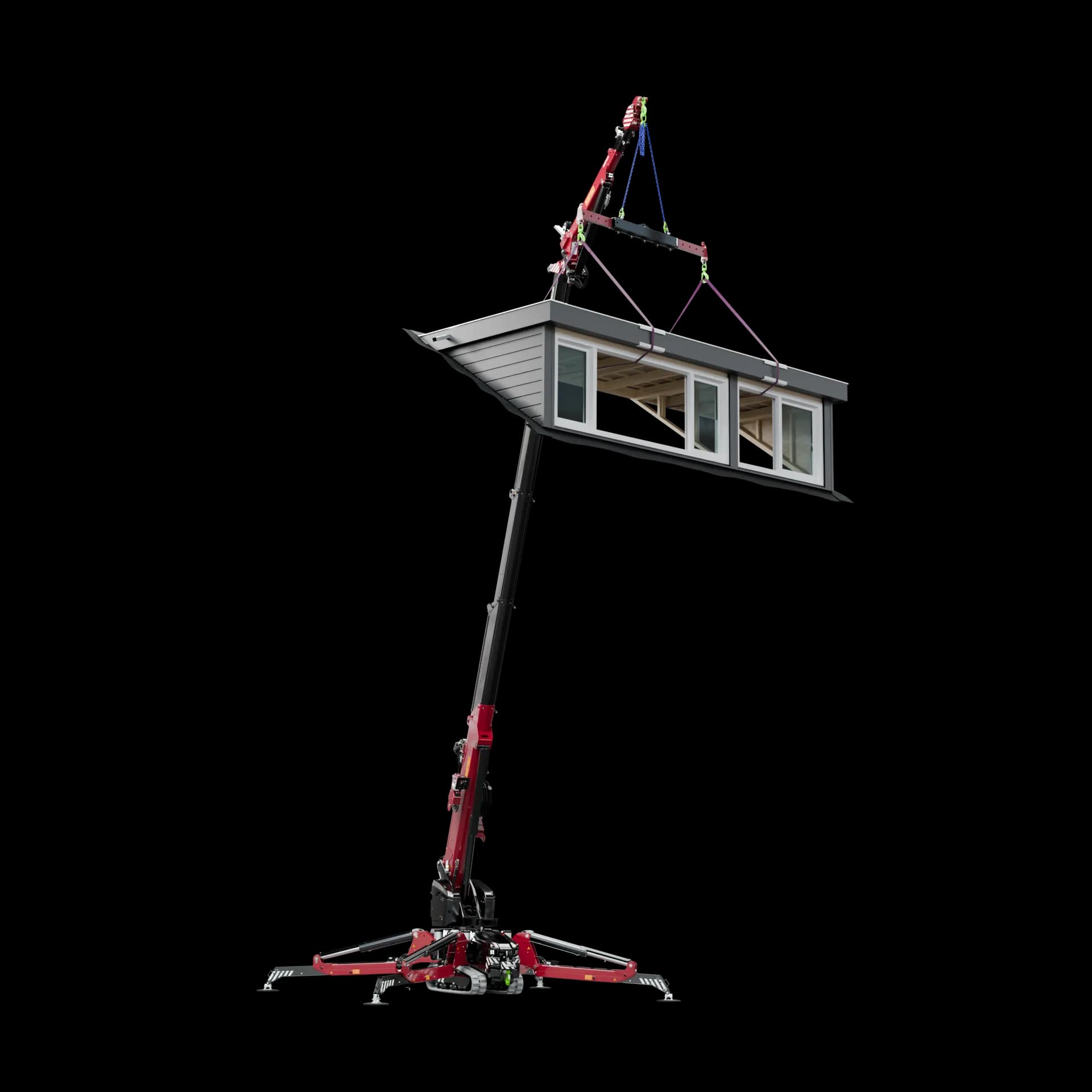

The C10e features a versatile jib system with automatic attachment recognition. Thanks to the new quick coupler, you can easily switch between different jibs and accessories. The crane automatically recognizes which attachment is mounted and calculates accordingly, ensuring you always have the right capacity and maximum efficiency.
Maximum capacity
High horizontal lifting load

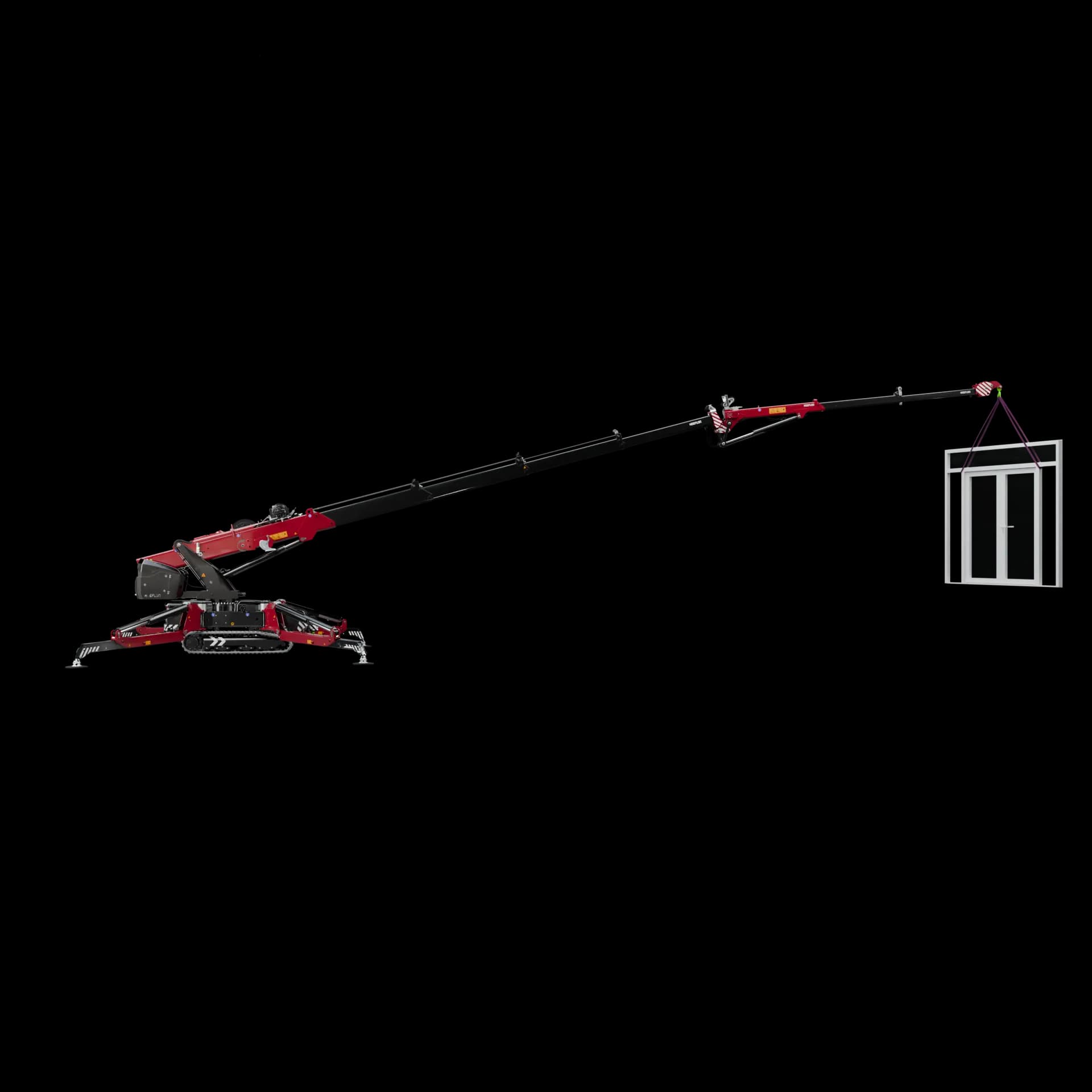

Unique in its class. The Hoeflon C10e offers an impressive horizontal lifting capacity. At the end of the boom, the crane can lift up to 500 kg, and at the end of the jib, it reaches a capacity of 209 kg.
