Hoeflon C30eL
Compact crane with groundbreaking reach
7000 kg
30.5 m
8895 kg
Specifications
Groundbreaking reach and mobility
The new C30eL takes lifting height and mobility to the next level. Thanks to its maximum reach of no less than 30.5 metres, new working heights and applications become possible. From a single position, significantly more can be achieved, reducing the need for repositioning and increasing efficiency.

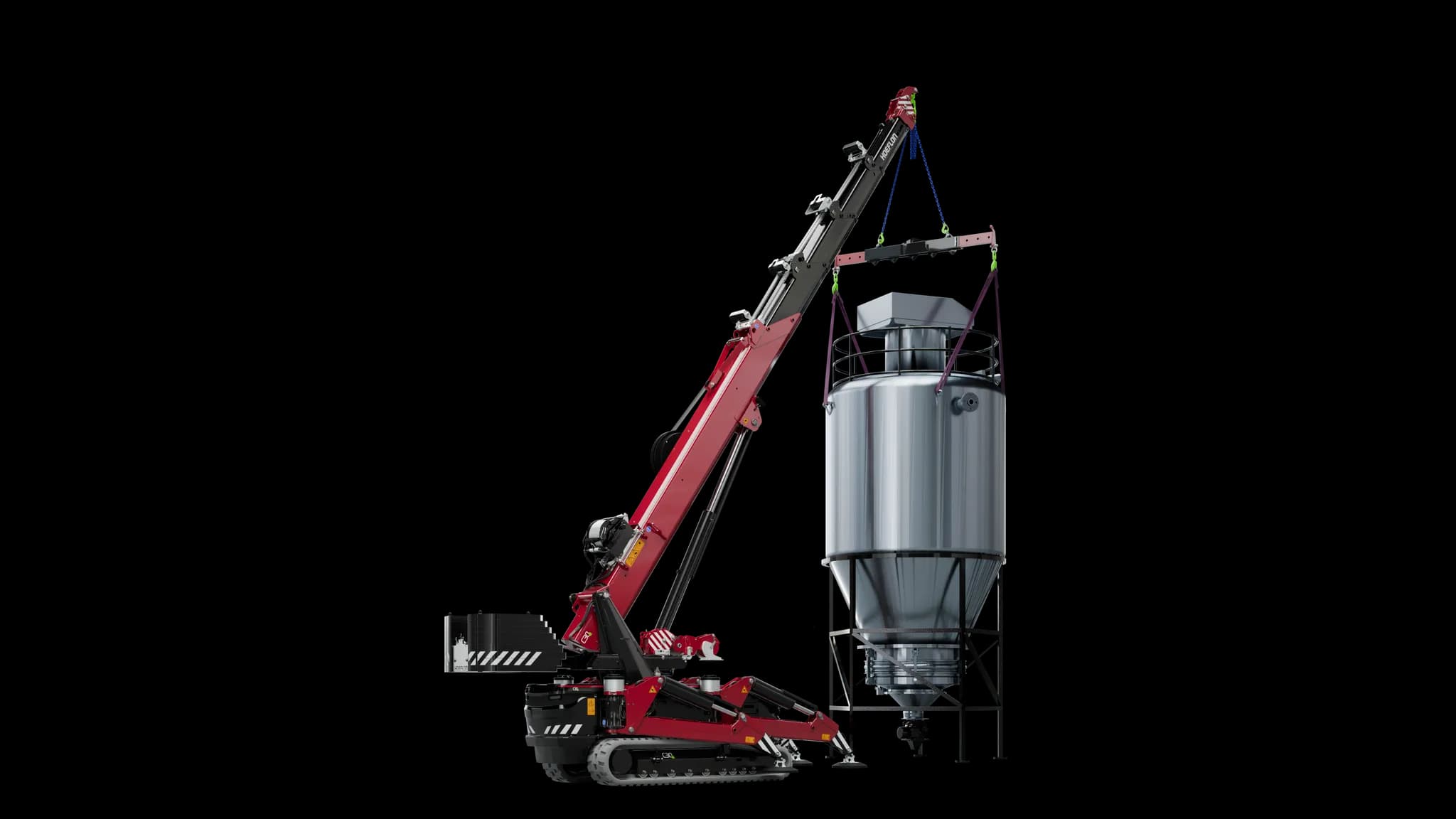

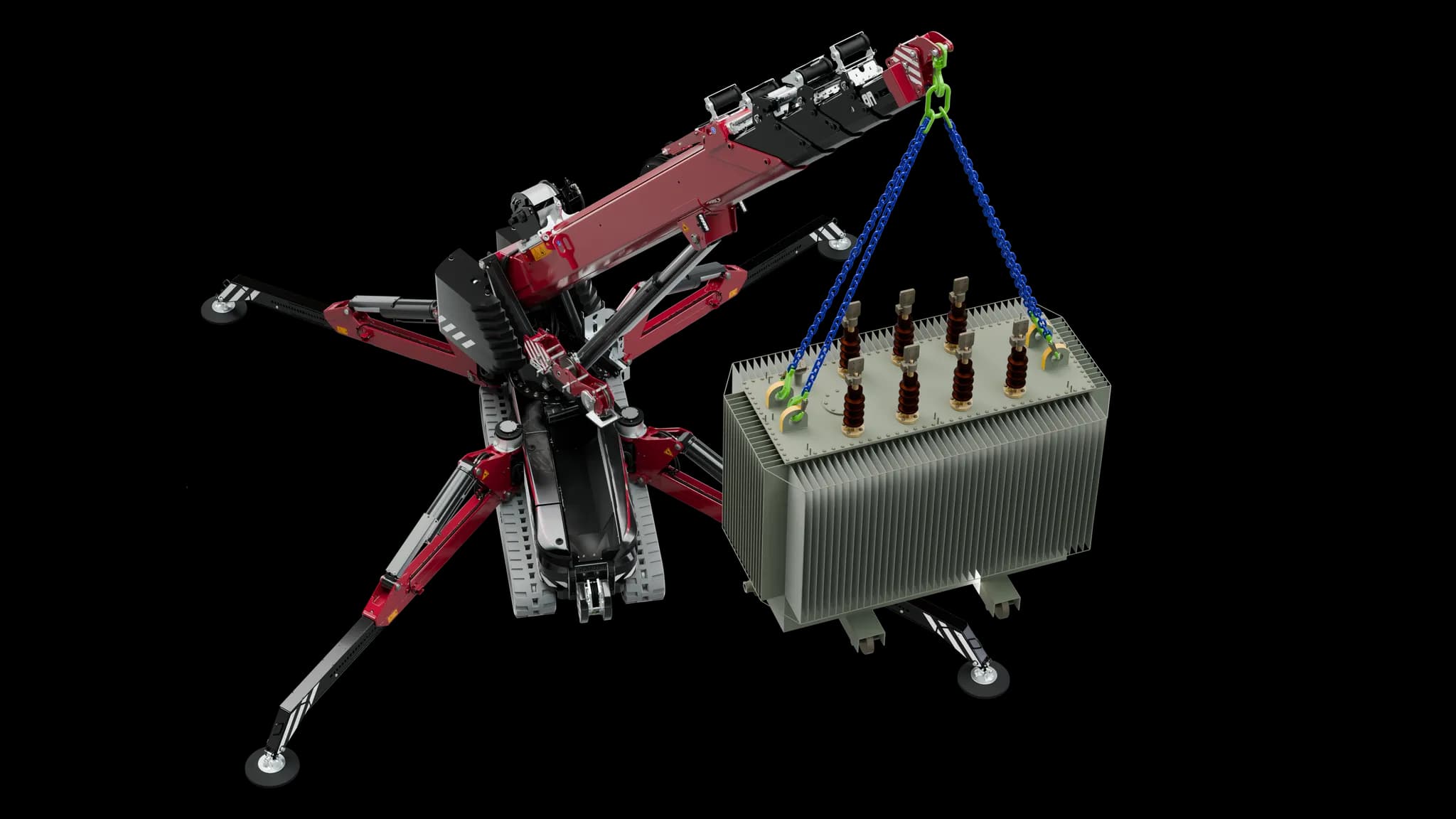

In addition to its reach, the C30eL is a true powerhouse. This 7-ton mini crane makes optimal use of its capacity and excels in a wide range of applications, such as moving machinery in factories, installing glass at great heights, and lifting materials over buildings.
This electric compact crane is fully operated by remote control, allowing the operator to always maintain the best possible view and fully focus on the lifting operation.
Reaches further than ever before
Reach

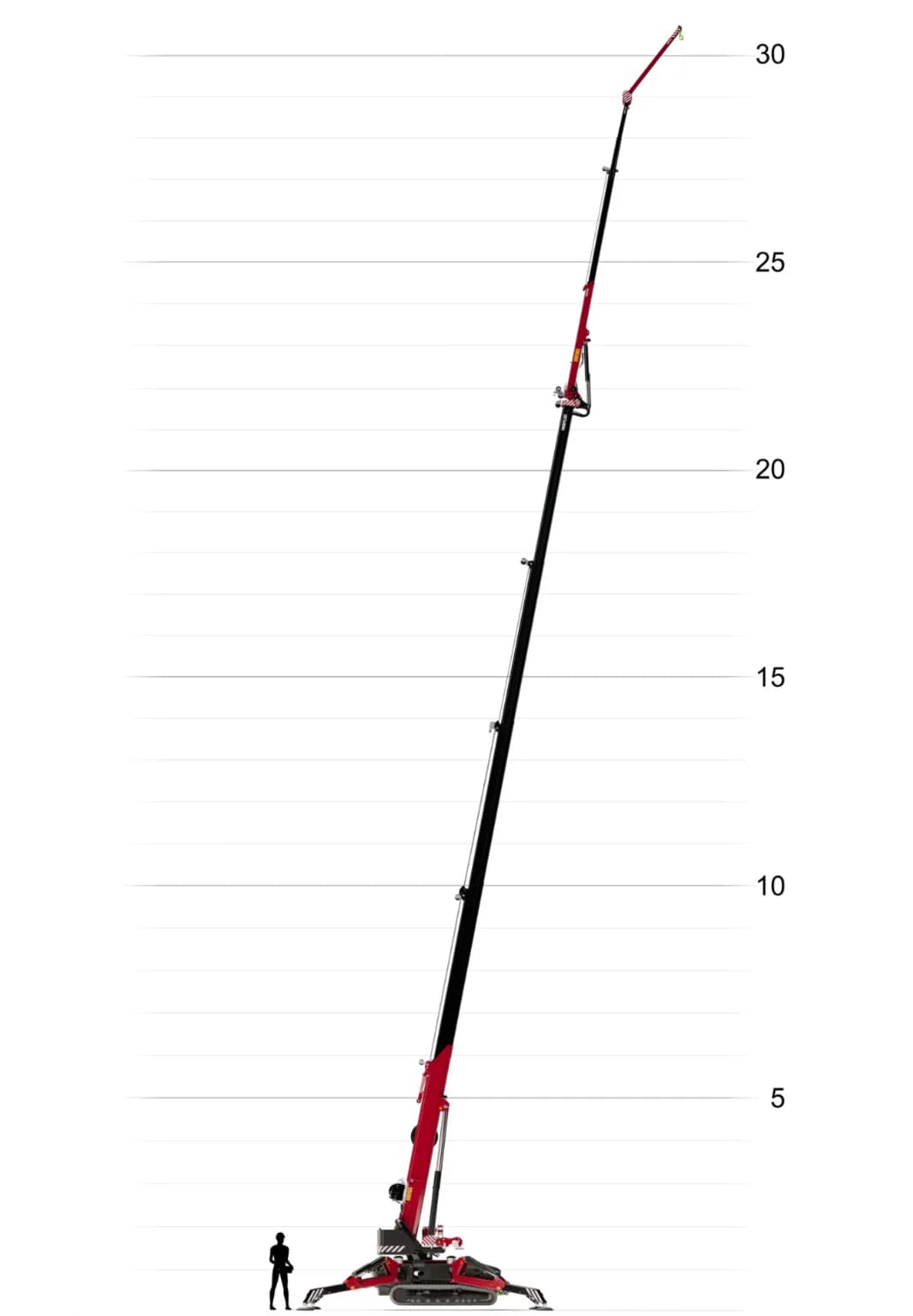

With a lifting height of up to 30.5 meters, including the manual jib extension, the C30eL reaches farther than ever before. This additional length also provides unmatched mobility within its class. From a single position, you can easily reach more, reducing repositioning and enabling more efficient working.
Moving loads while driving
Pick & carry
With the C30eL, loads can be moved in a controlled and efficient manner, even while driving. Its stable base and well-balanced weight distribution ensure confidence, even on sloping terrain.
Thanks to its intelligent crawler configuration and increased ground clearance, the C30eL easily overcomes obstacles and uneven surfaces. This makes the crane particularly suitable for job sites where conditions are not always level or easily accessible.
In addition, the C30eL offers flexibility when transporting longer elements, such as beams, which can be carried alongside the crane.
Maximum lifting space
Lifting range from -5° to 95°

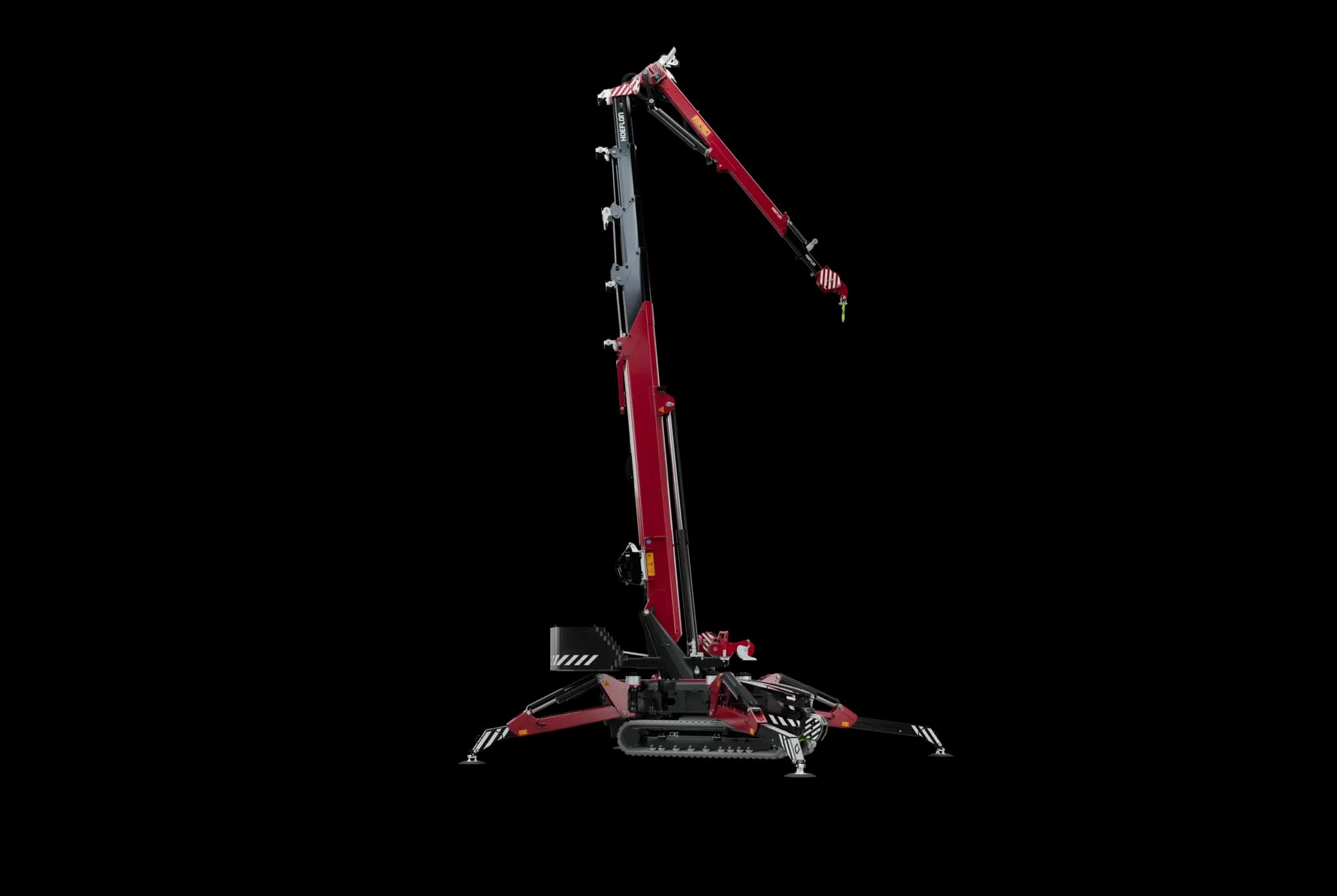

The main boom of the C30eL offers a lifting range from -5° to 95°, creating more space to position loads in compact areas. This increases the crane’s versatility and enables efficient operation in confined environments.
Overcoming obstacles and height differences
Folding legs

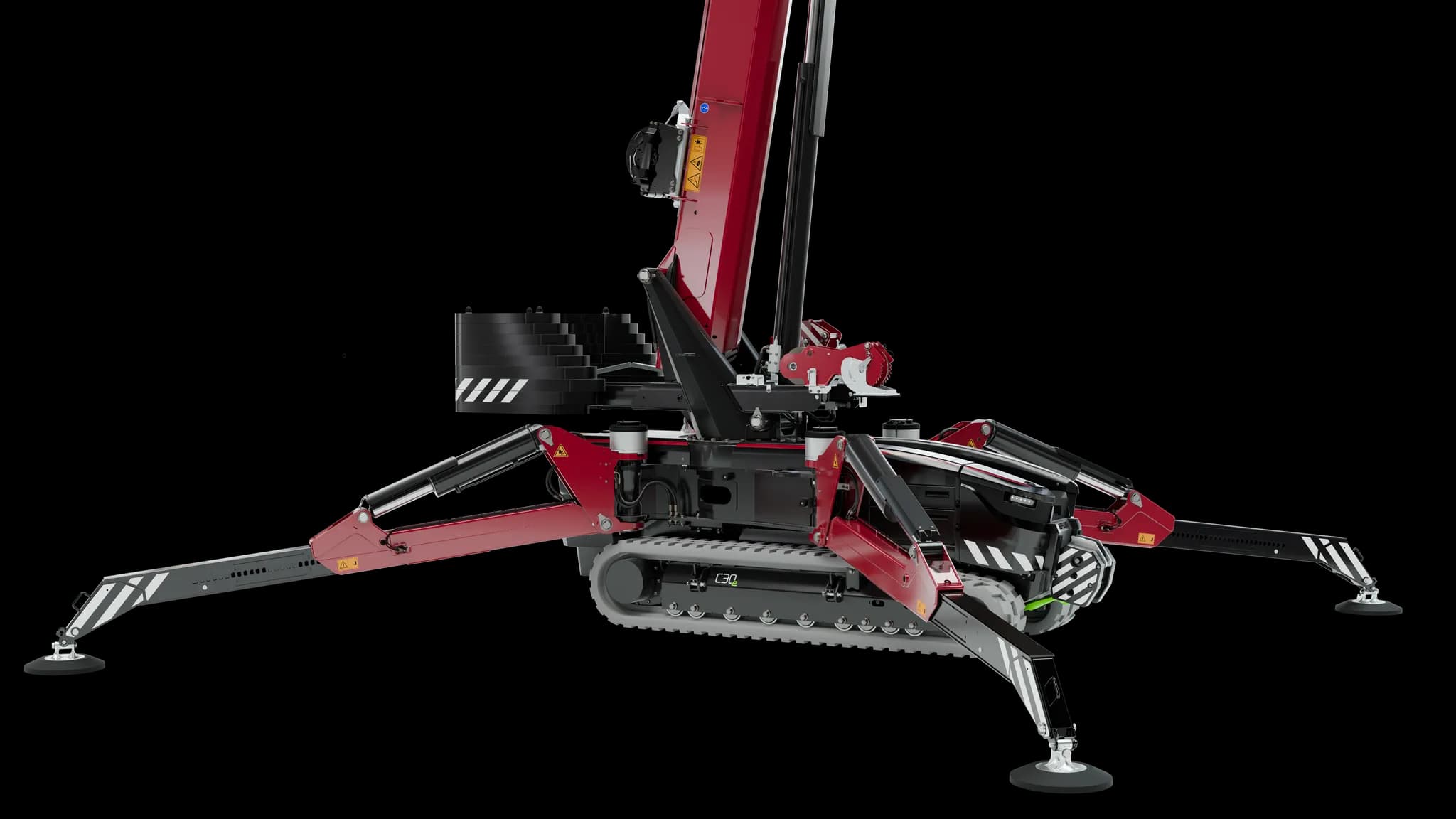

The C30eL is equipped with folding legs that are positioned low to the ground as standard, allowing them to be deployed underneath obstacles. When setting up over an obstacle, the outrigger can be easily extended.
These outriggers are also highly effective on uneven terrain, where they can compensate for height differences of up to 1.6 metres.
Ultra-compact
Foldable winch

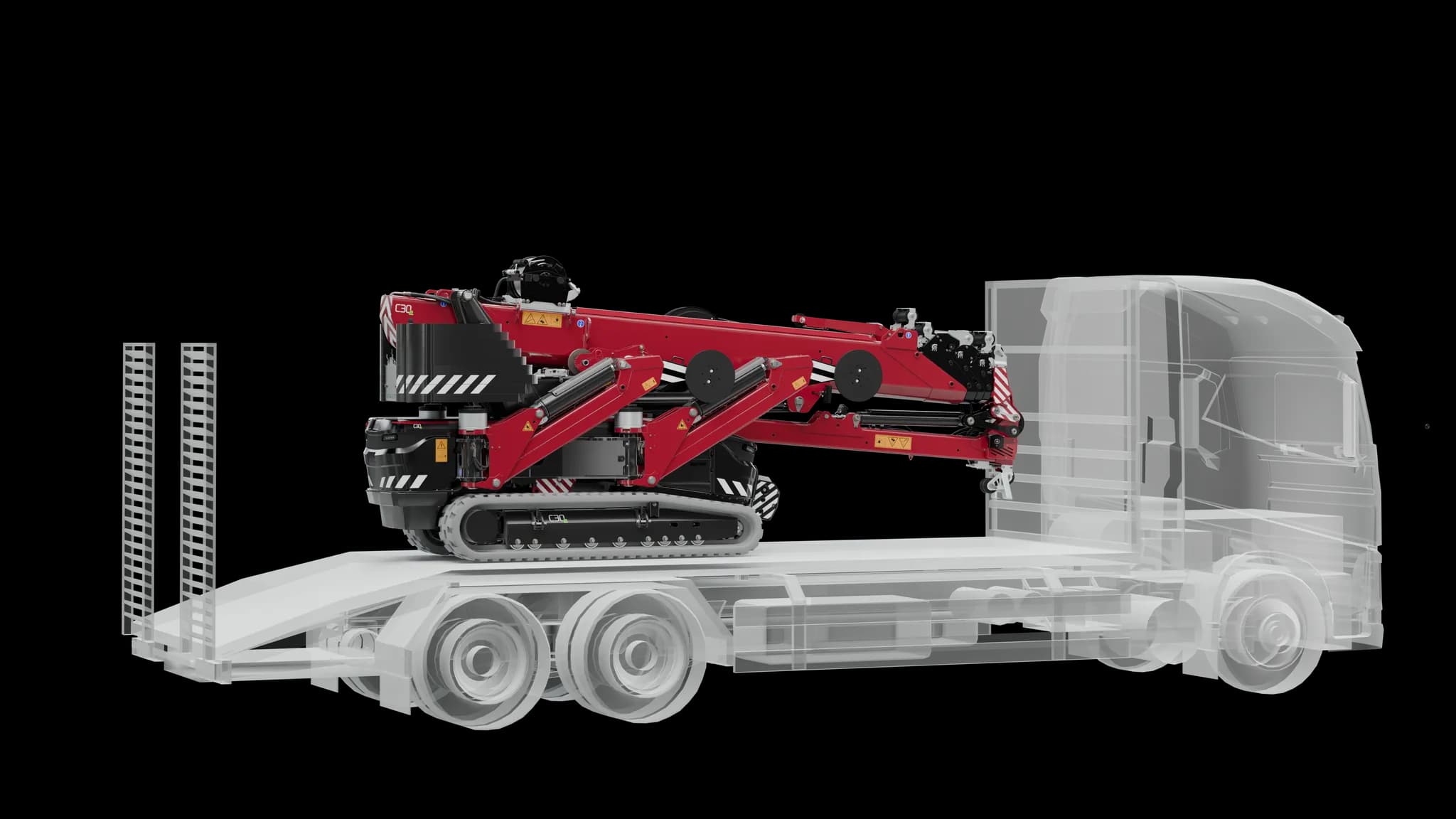

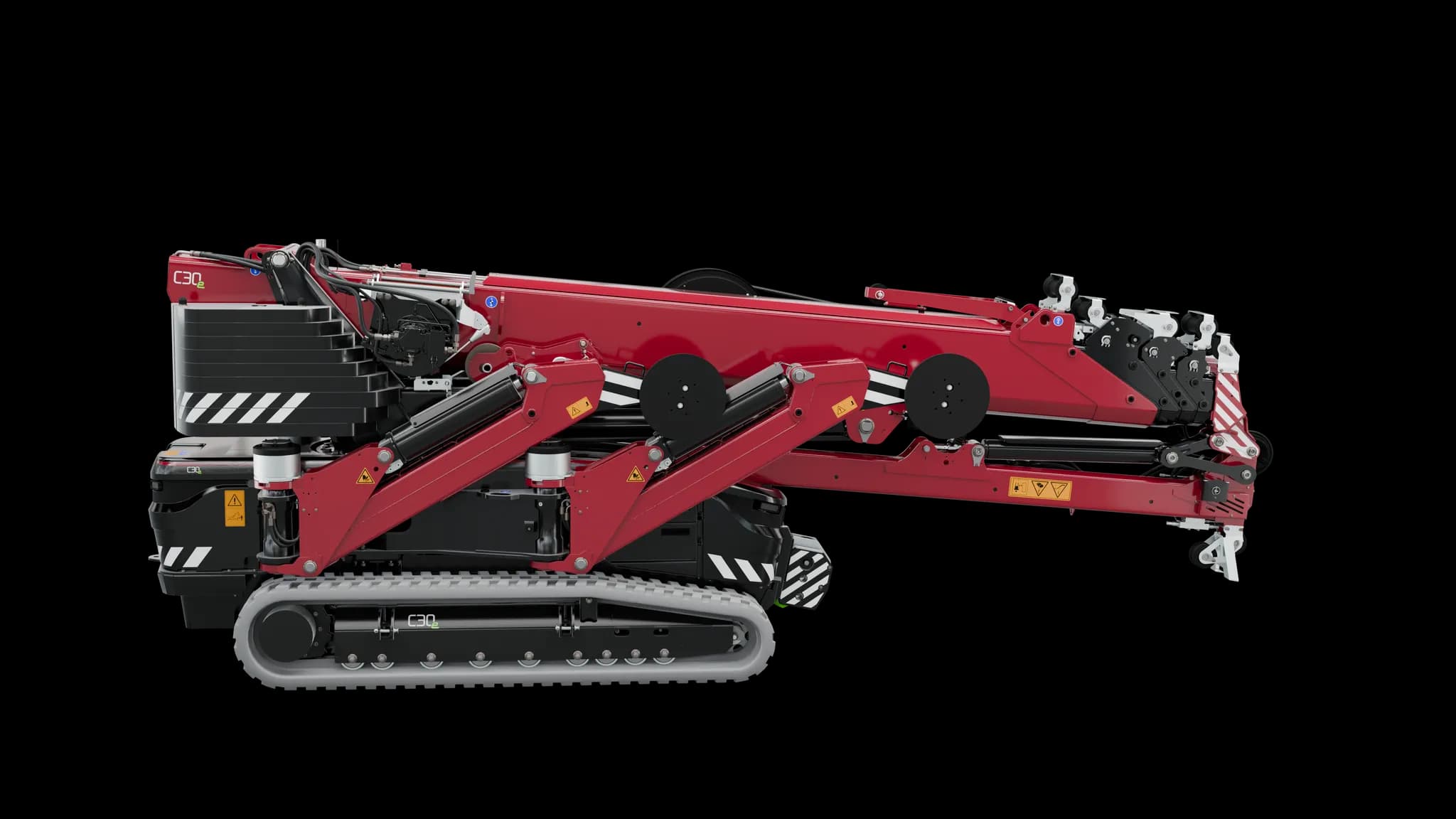

Thanks to its smart design, the C30eL remains remarkably compact during transport. The foldable winch ensures that the crane takes up minimal space in transport position, making transportation easier and more efficient.
Flexible positioning
Hydraulically extendable and adjustable outriggers
The C30eL is equipped with hydraulic extendable outriggers, allowing you to make full use of the lifting capacity in any situation.
The outriggers are also hydraulically adjustable, ensuring that the crane can always be positioned stably and precisely. This guarantees an optimal setup at every job site.
