Hoeflon C10e
Large powerhouse
4000 kg
22 m
4400 kg
Specifications
4-tonne mini crane

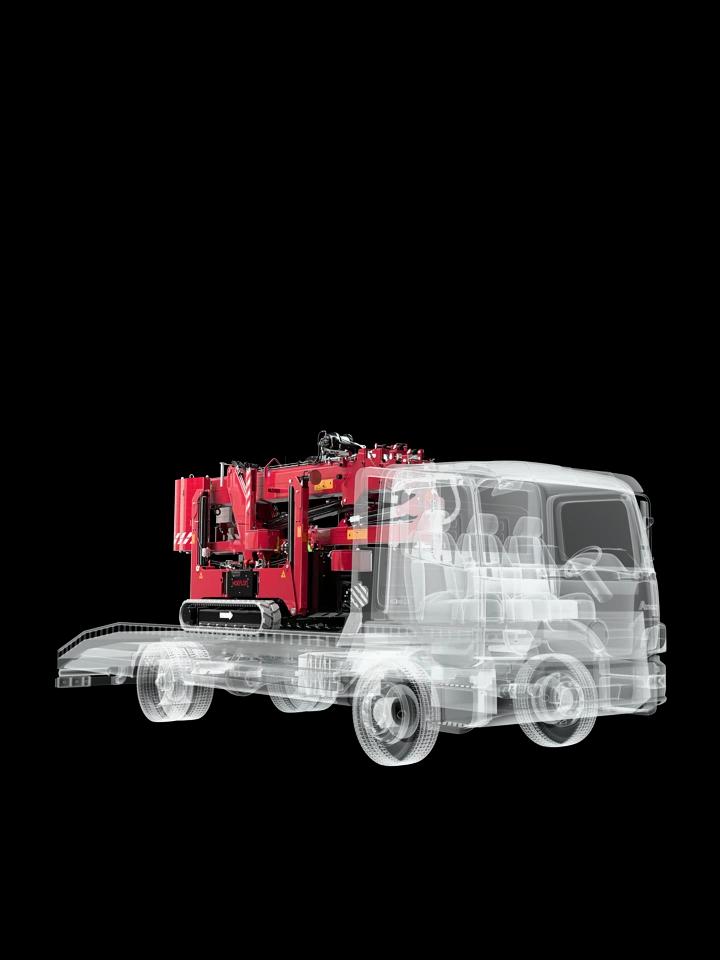

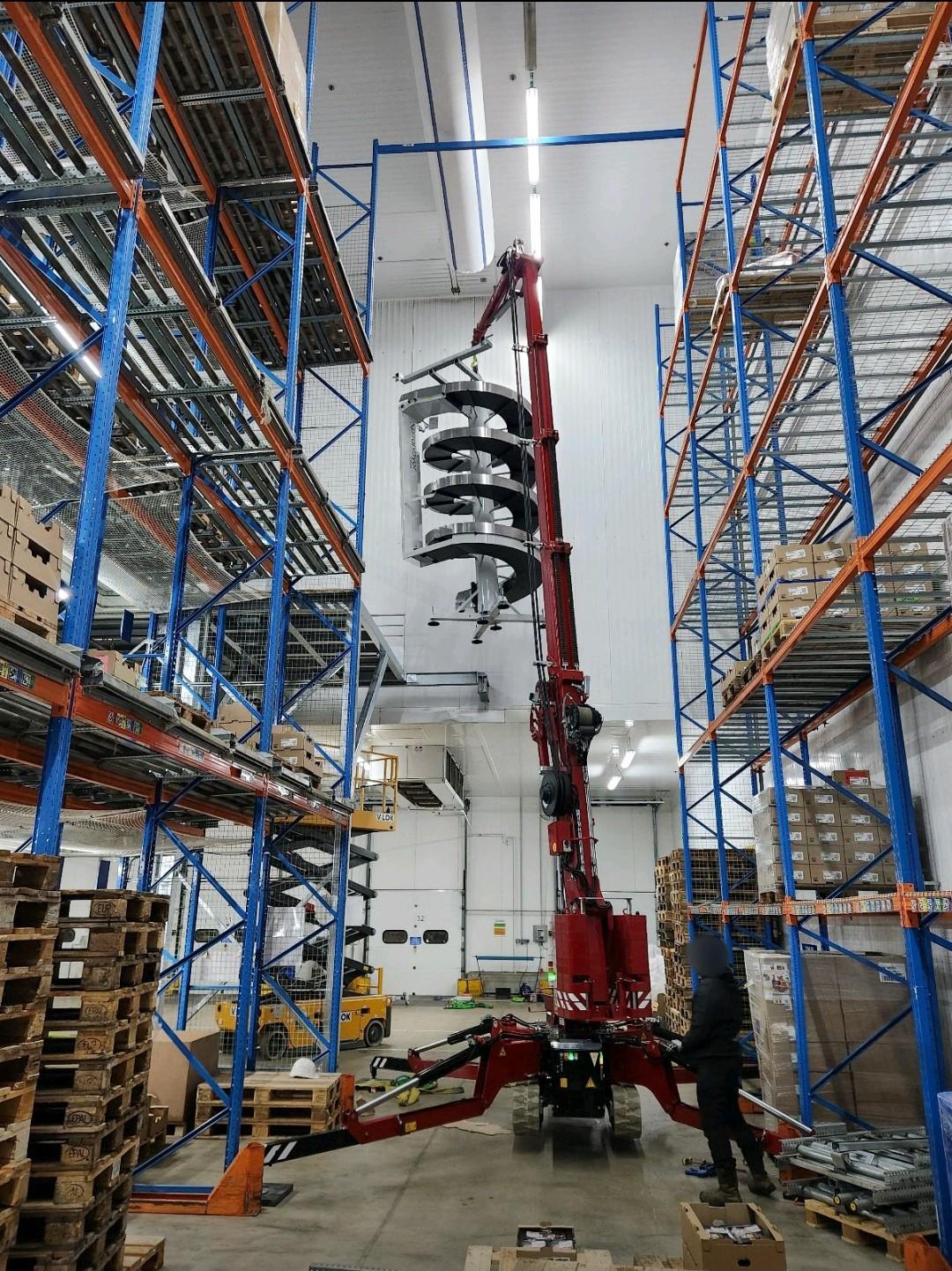

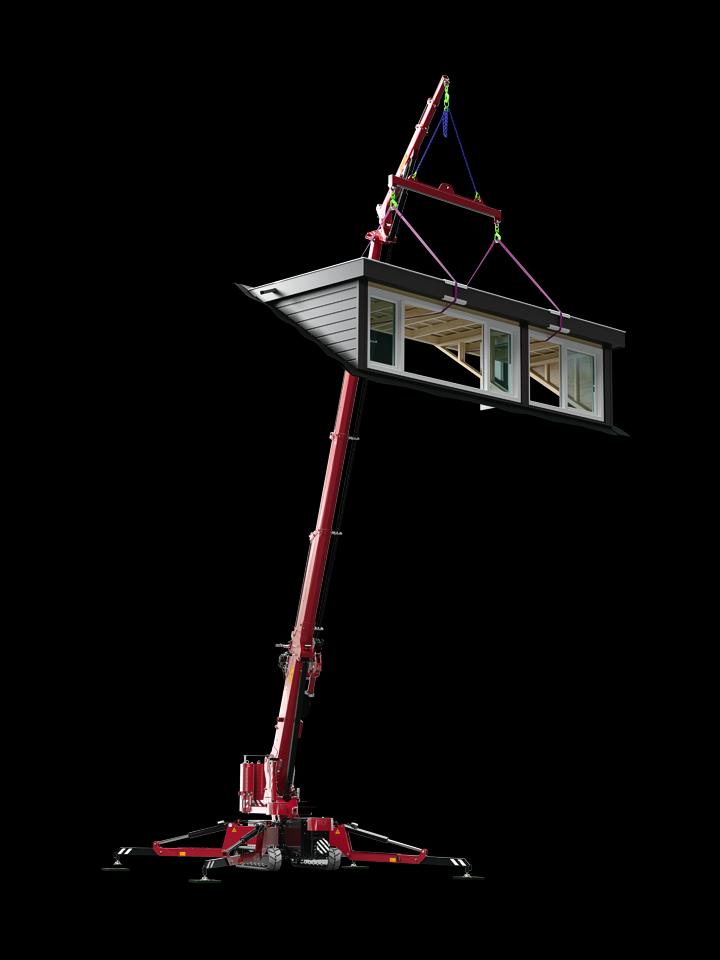

Mighty powerhouse. At 4700 kg, the C10e can definitely be called that. The C10e gets the maximum capacity out of a 4-tonne mini crane. The C10e's compact size allows it to easily squeeze through tight spots. Narrow passages are no problem at all. Whether you are hoisting a swimming pool into a backyard or moving a complete production line in a factory, the C10e does it all.
Maximum capacity
High horizontal lifting capacity

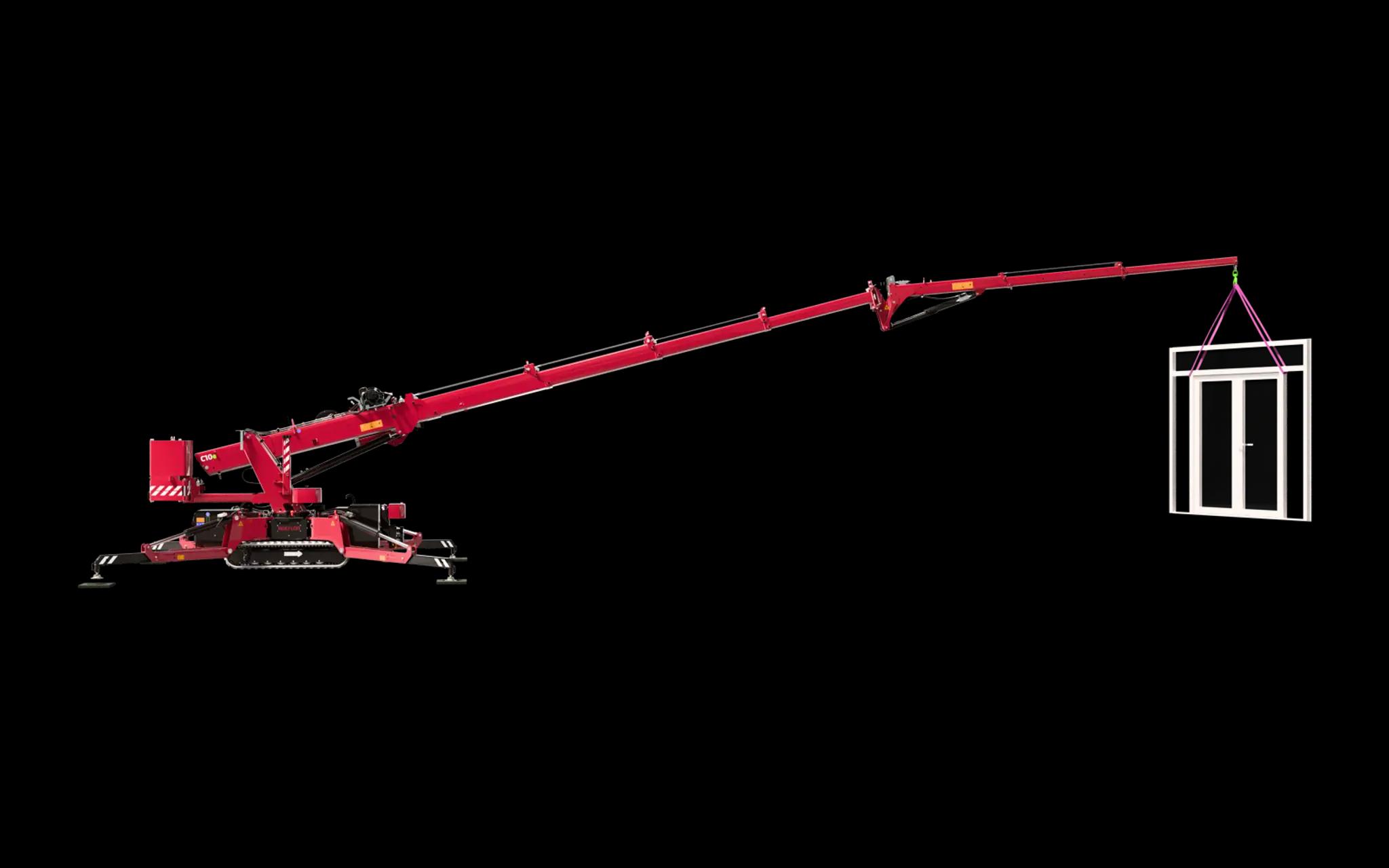

Unique in its class. The Hoeflon C10e offers impressive horizontal lifting capacities despite its compact design. At the end of the mast the crane can lift up to 500 kg, and at the end of the jib it achieves a capacity of 209 kg.
Maximum capacity
Counterweight extendable/retractable and tiltable

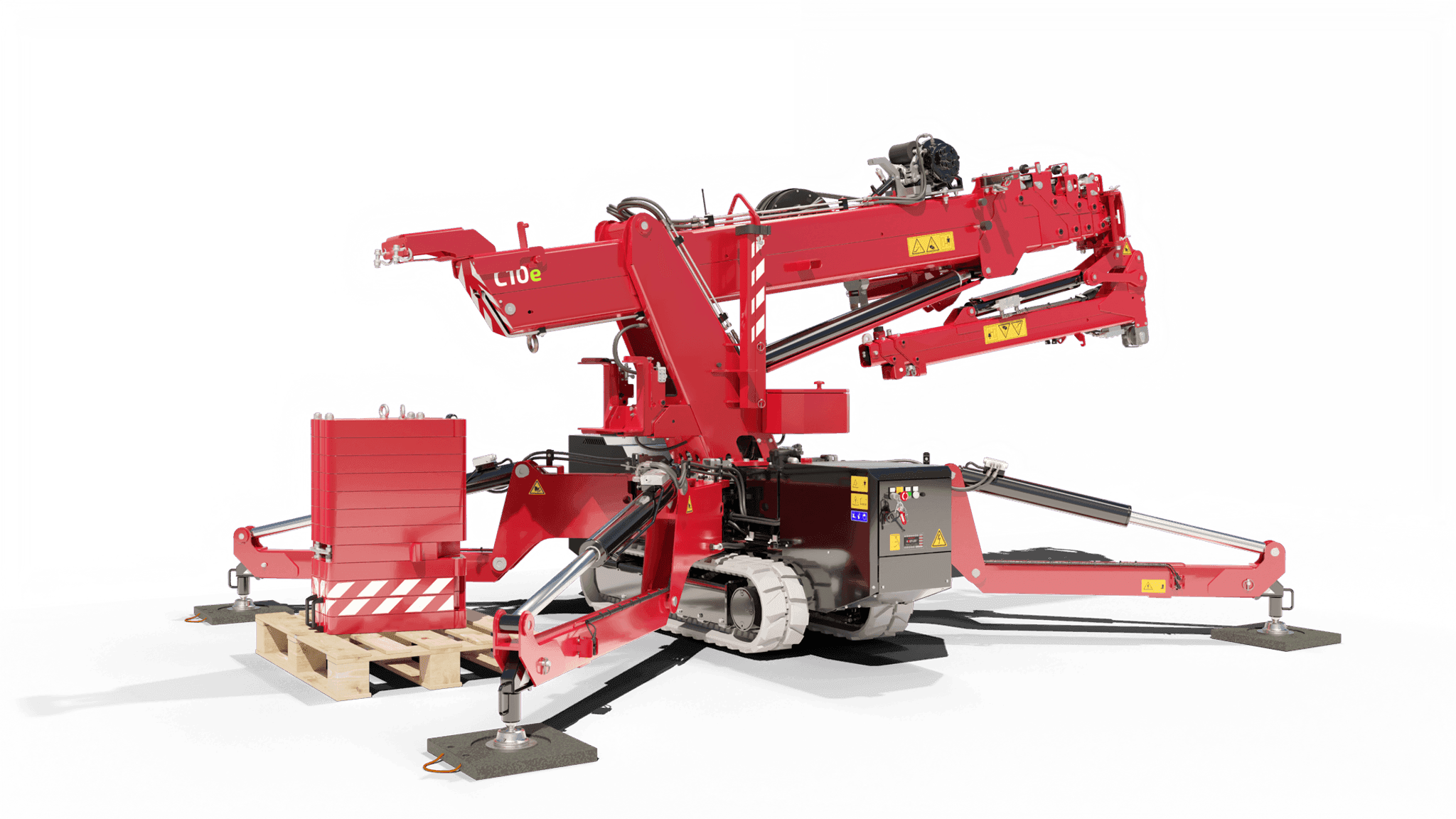

The counterweight of the C10e is hydraulically extendable and can be manually tilted. The capacity of the crane increases when the counterweight is extended. The crane is equipped with a system that automatically detects whether the counterweight is extended or retracted.
Reduce weight

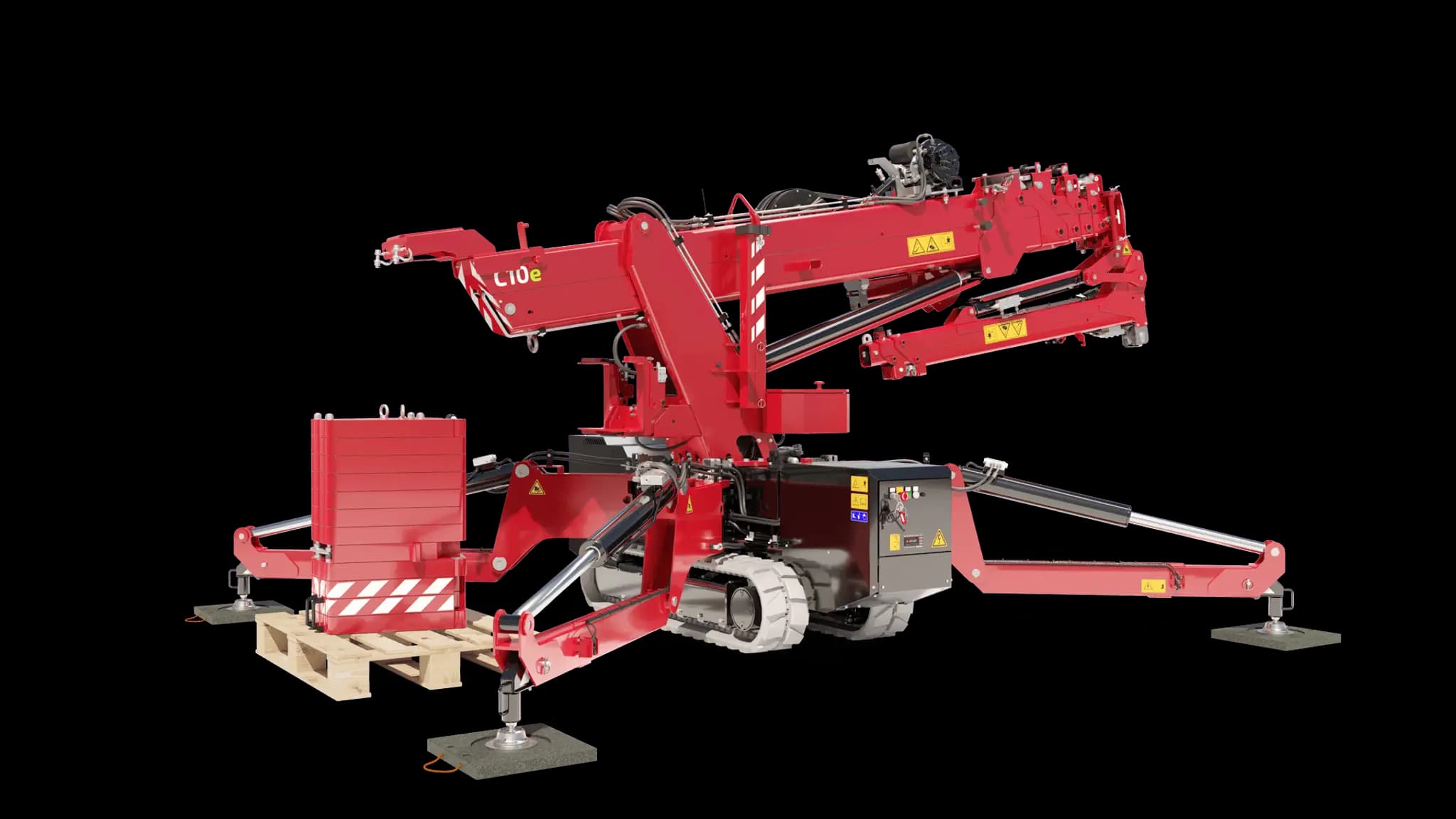

Counterweight and jib removable
The counterweight of the C10e is removable, allowing the crane's weight to be reduced by 1340 kg. By also removing the jib, the crane's net weight can even be reduced to 3260 kg.
Positioning

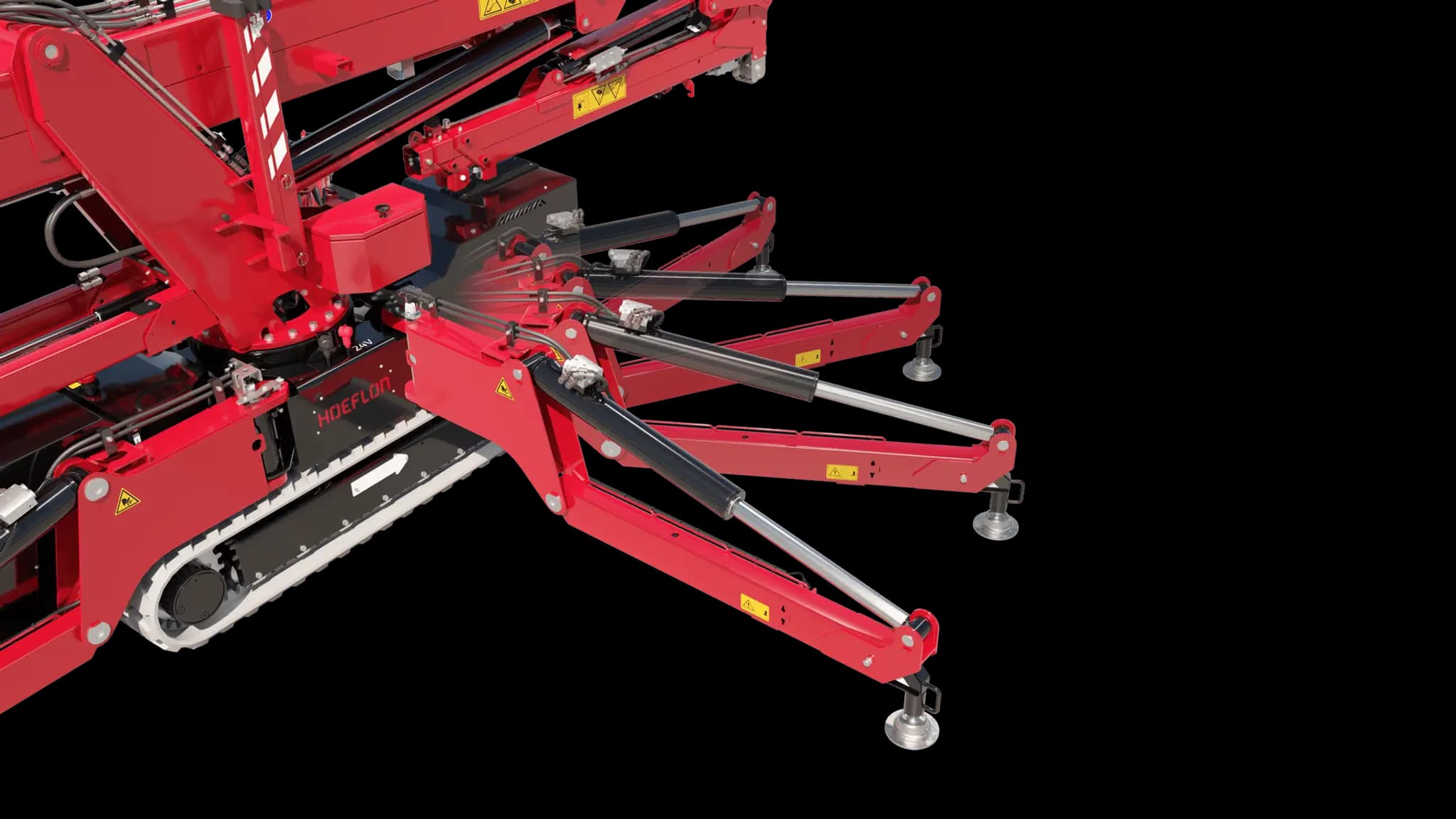

Extendable and adjustable legs

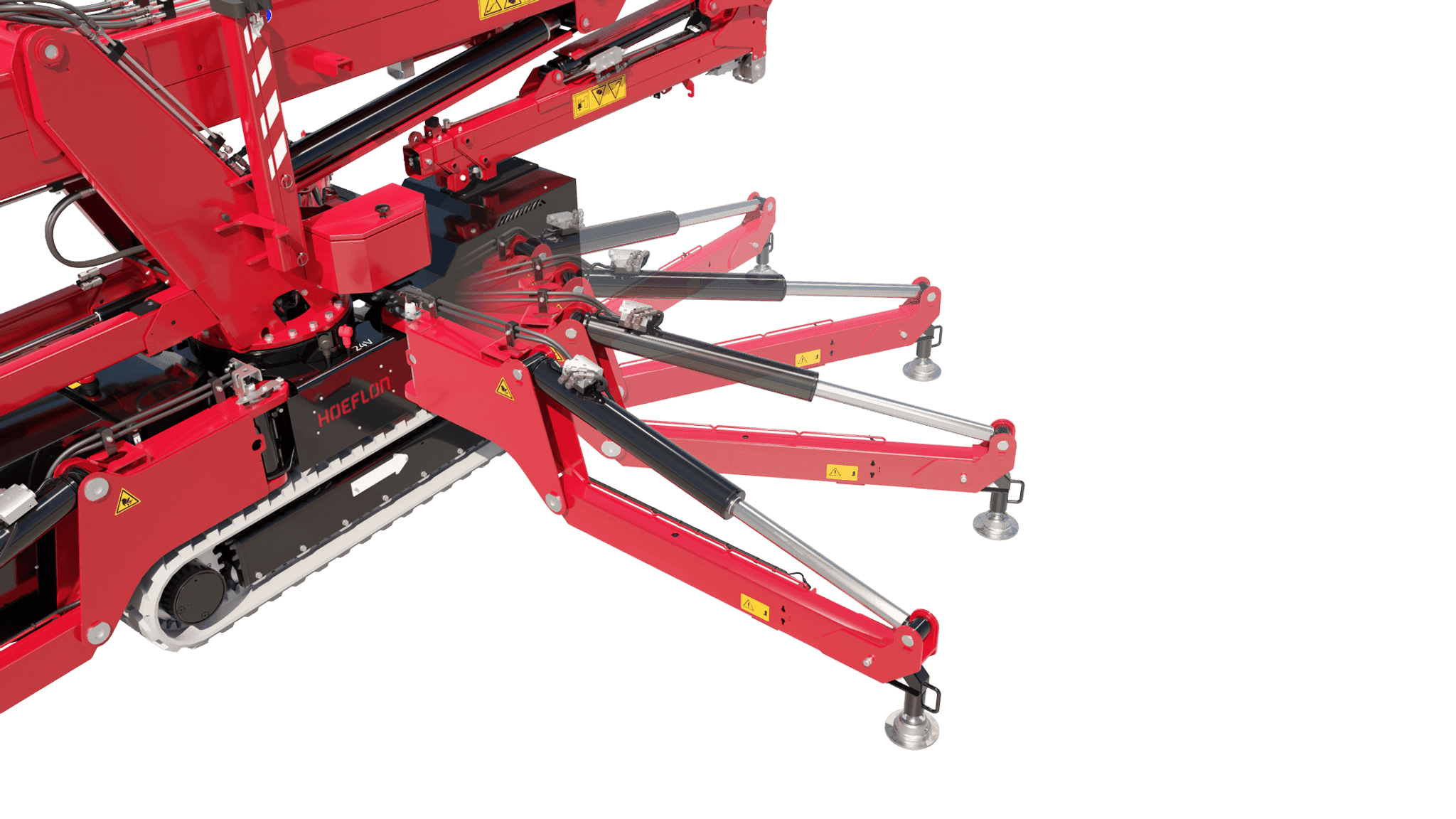

The legs of the C10e are hydraulically extendable, so you can attain the maximum capacity in virtually any situation. The legs are also manually adjustable, with five settings per leg. This provides great flexibility and adaptability for various working situations.
