Hoeflon C1e

The pick-and-carry crane

Hoeflon C1e

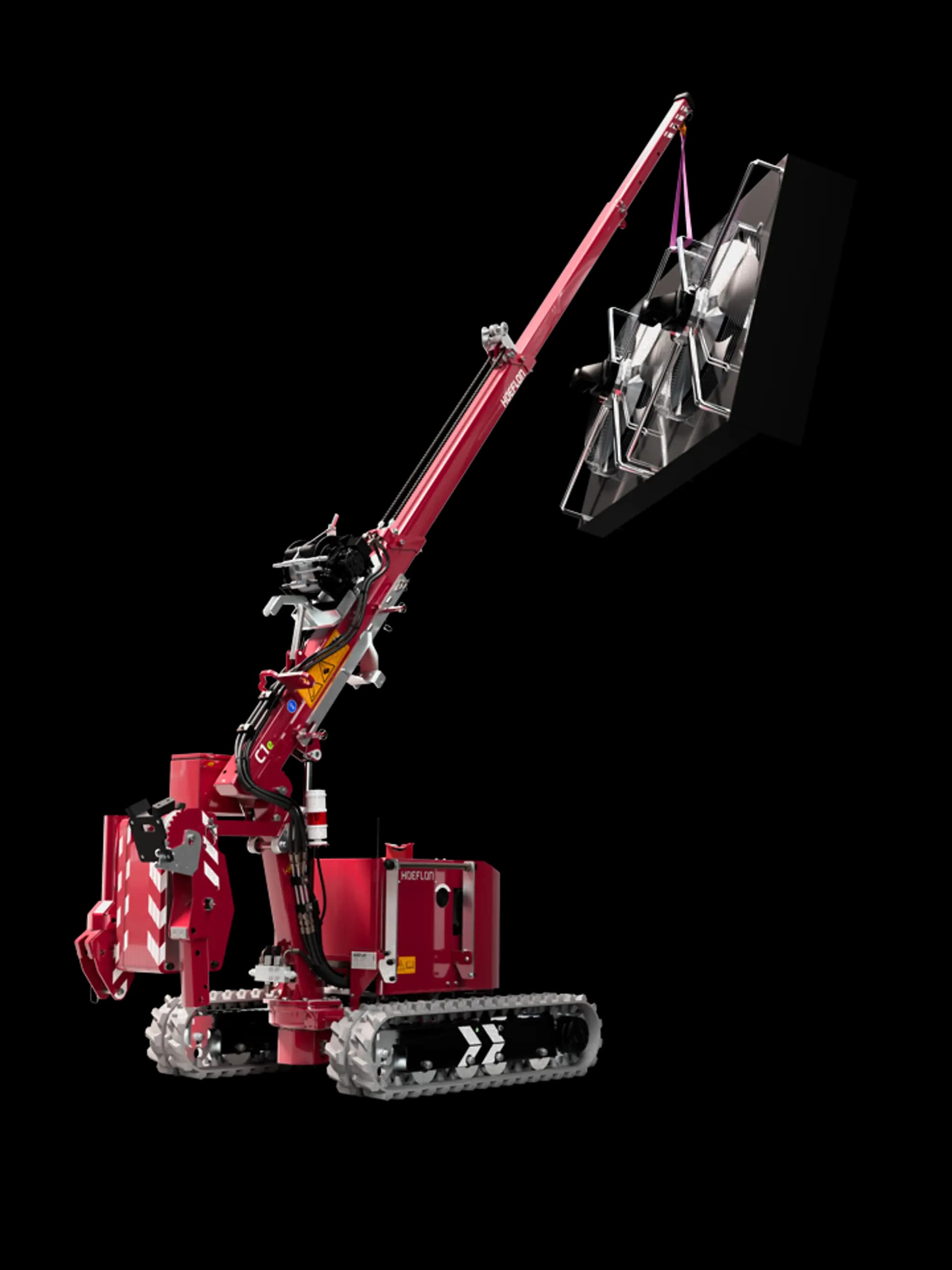

Image of the Hoeflon C1e crane at maximum load capacity.

550 kg

Image of the Hoeflon C1e crane at maximum lifting height.

5.6 m

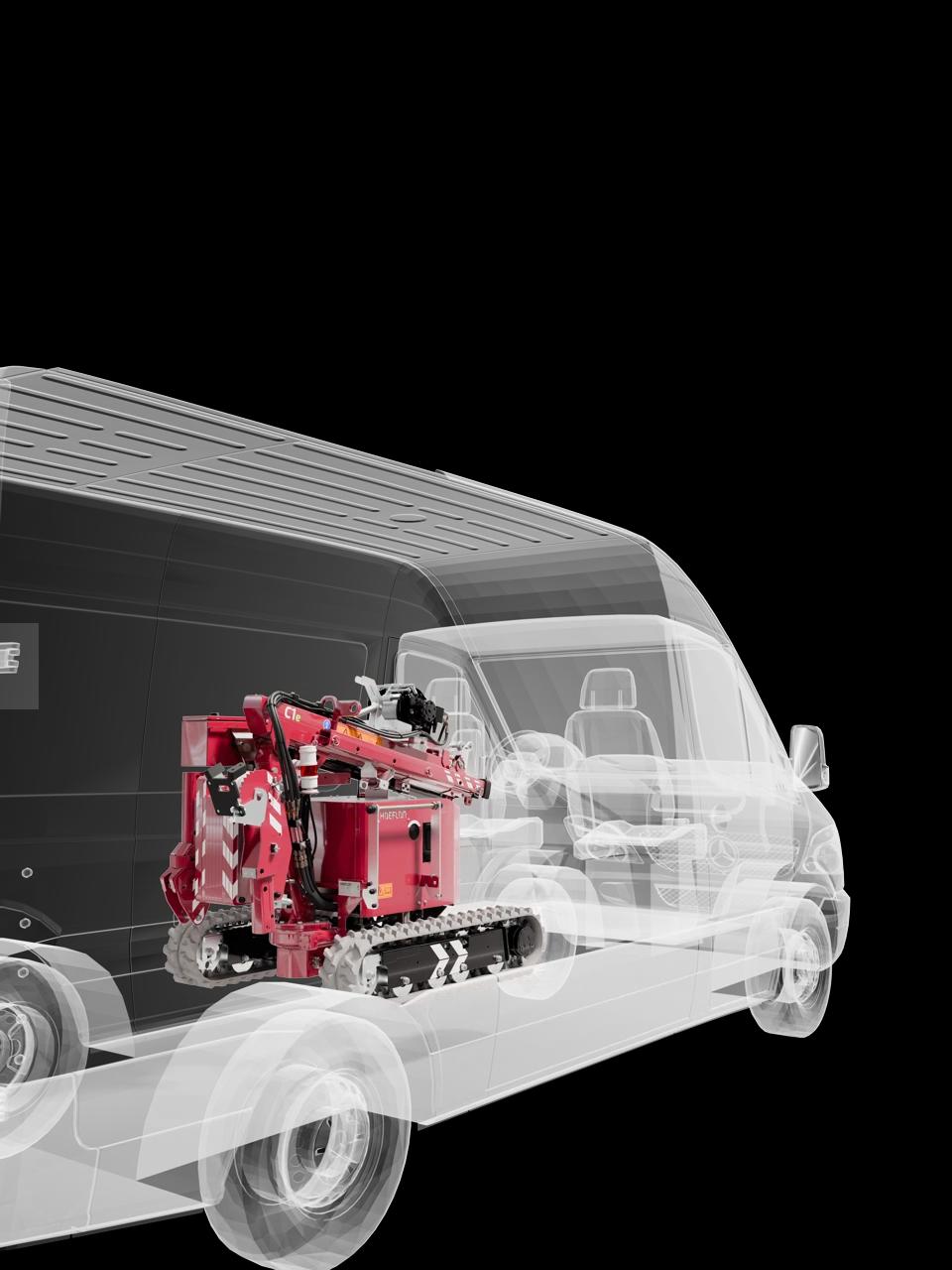

Image of the Hoeflon C1 crane inside a transport van.

1060 kg

Specifications

Capacity
550 KG
Capacity at max. outreach
not applicable
Winch capacity
460 kg
Lifting height incl. jib
5,6 meters, not applicable
Max. outreach incl. jib
not applicable
Jib length
not applicable
Boom outreach
4.6 m and without options 4.4 m
Boom angle
-10 to 75 degrees
Incline angle
15 degrees forward and 23 degrees backward
Slewing range
136 degree
Dimensions L x W x H
1.7m, 0.7m, 1.36m
Dimensions incl. options
1.7m, 0.7m, 1.36m
Total weight incl. options
1060 kg
Total weight excl. options
960 kg
Ground pressure
0.28 kg/cm2
Charging options
230 V

Compact to the max

Hoeflon customers cite compactness and manoeuvrability as definite advantages of the C1e.

With its small dimensions, the C1e is easy to transport. Manoeuvring in tight spaces is a piece of cake with this machine. Moreover, the crane fits in a lift with ease. This is handy at construction sites and in industrial environments.

Driving with a load

Pick & carry

With this crane, you can drive while carrying a load. The C1e's compact size allows it to easily squeeze through tight spots. Narrow passages are no problem at all. Whether you are placing a window on the first floor or doing a maintenance job in a factory, the C1e does it all.

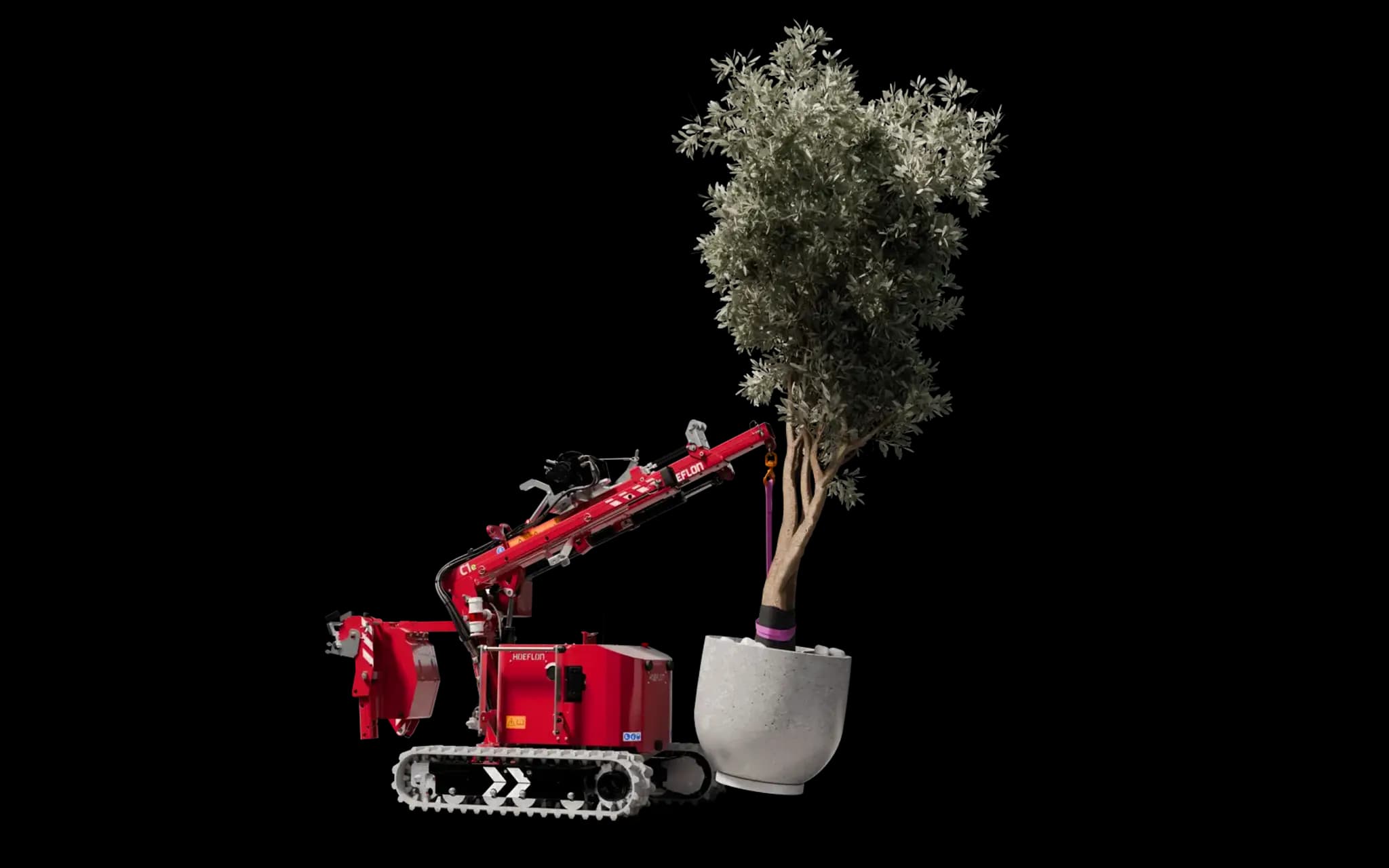

Image of the Hoeflon C1 crane in pick-and-carry mode with an olive tree.

Reduce the weight

Removable counterweight

The C1e can remove its own counterweight. This makes it possible to reduce the weight of the crane by 250 kg.

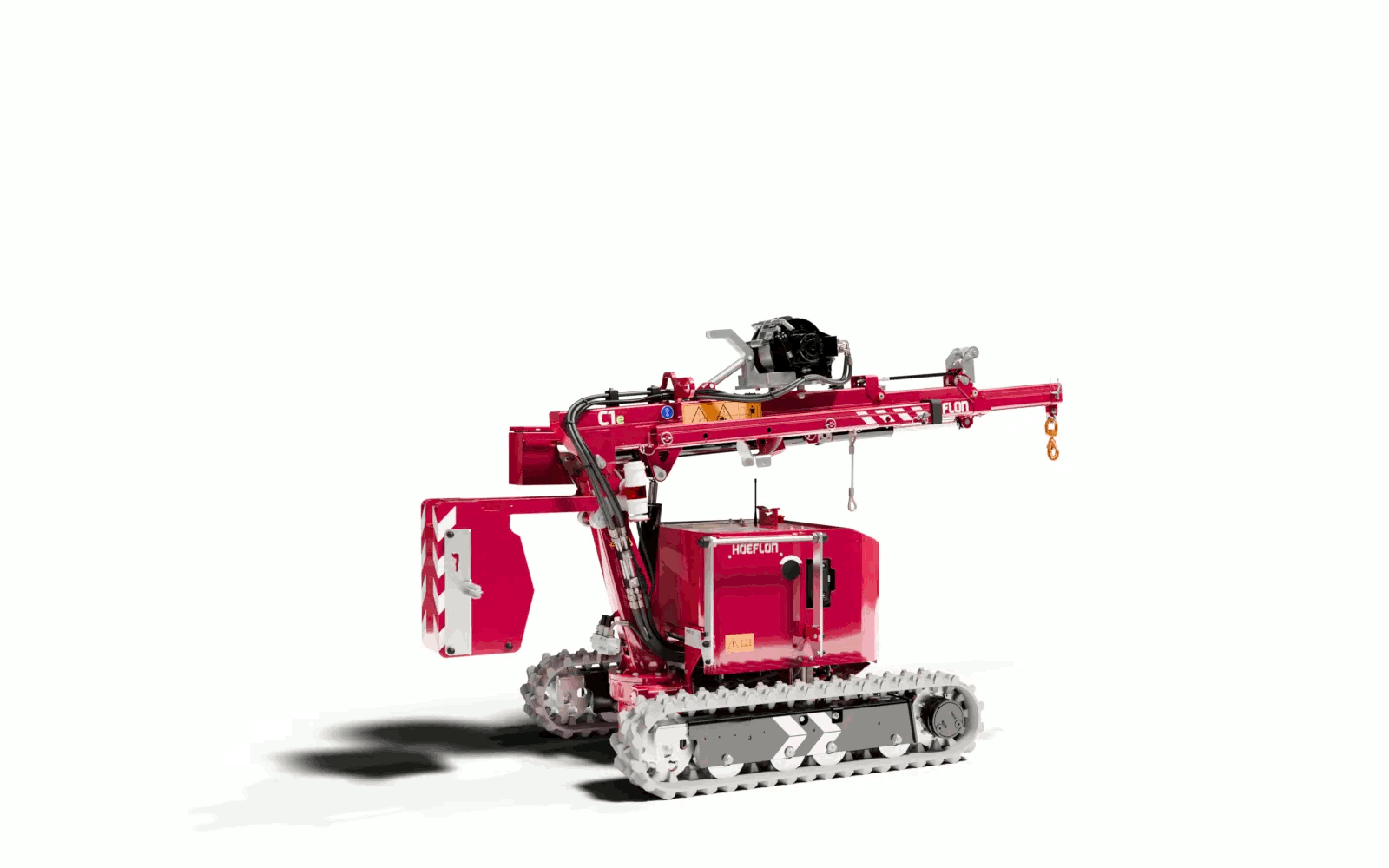

Animated image (GIF) of the Hoeflon C1 crane setting down the ballast.

Deployable anywhere

Fits in a lift

Weighing just 1050 kg, the C1e can be easily deployed anywhere. By reducing the weight, the crane can be placed in any lift.

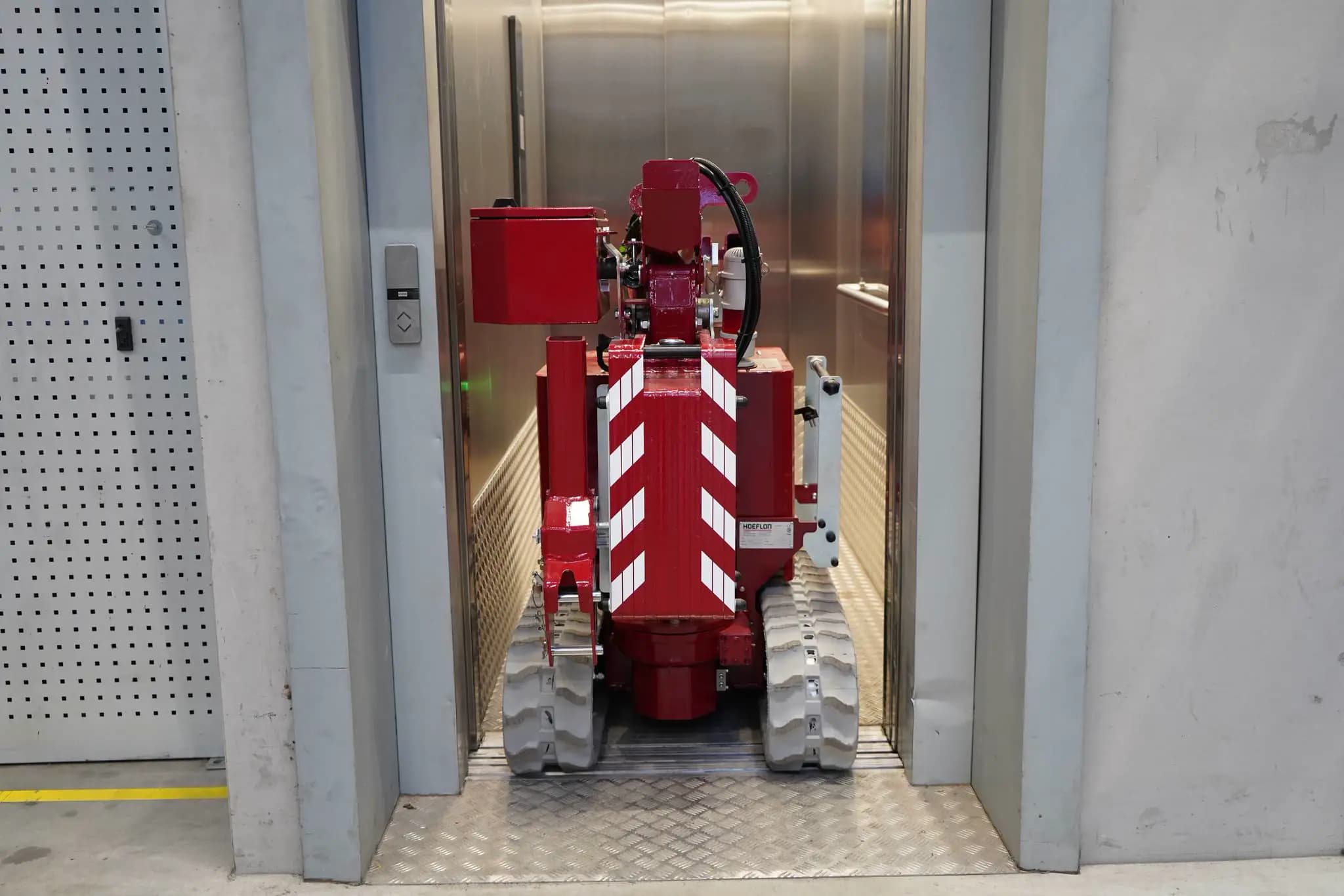

Image of the Hoeflon C1e crane in transport mode inside an elevator.

The smallest mini crane with winch capability

Winch capability

The C1e is equipped with a 25-metre winch cable and has a winch capacity of 500 kg. The winch weight, which weighs 2.5 kg, is stored in the included storage box.

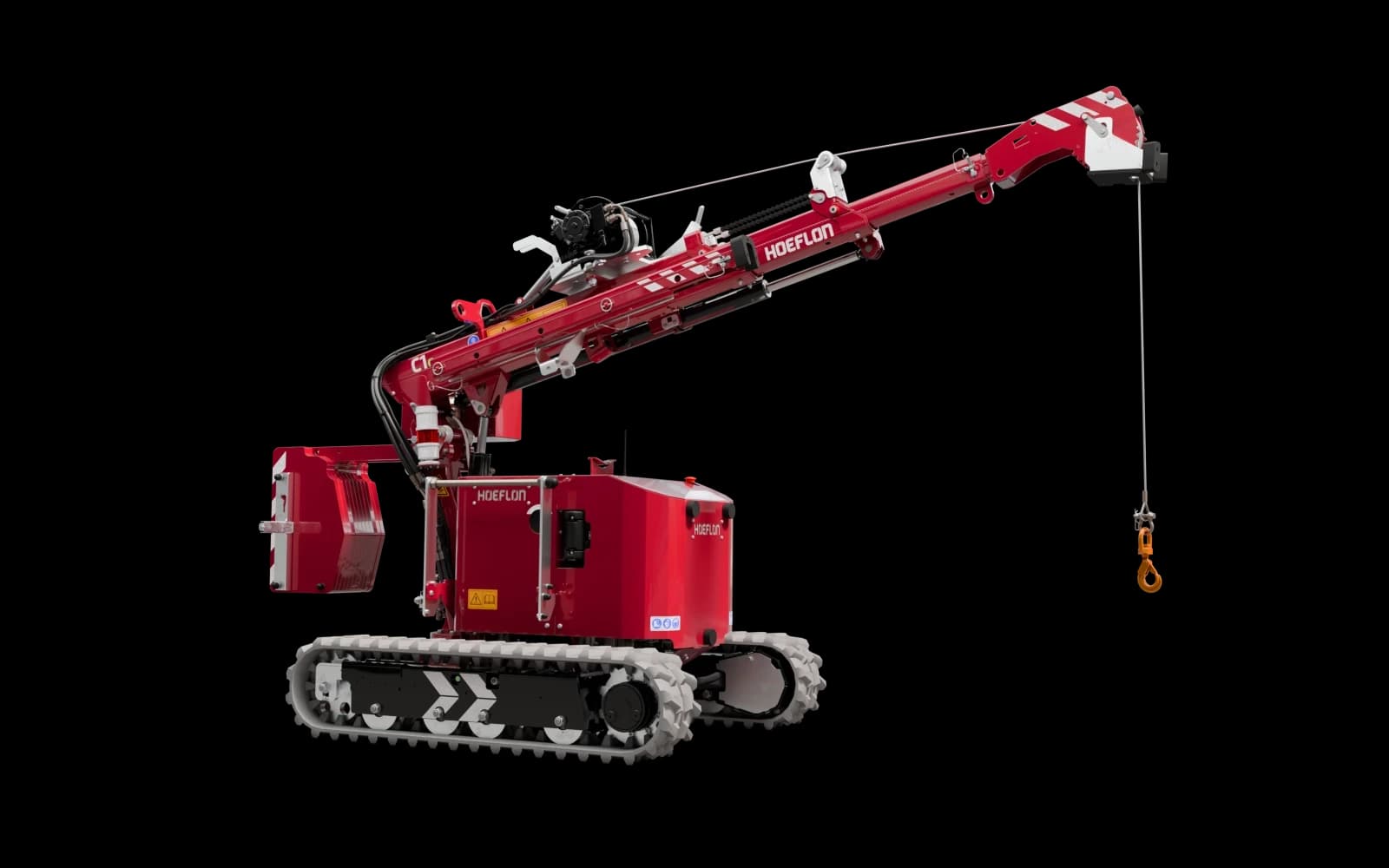

Image of the Hoeflon C1e crane equipped with a winch.

I want a C1e

Would your like information about our mini crane? Then please contact us. Our team is happy to help!
