Minicrane Hoeflon C30e

100% electric pick & carry crane

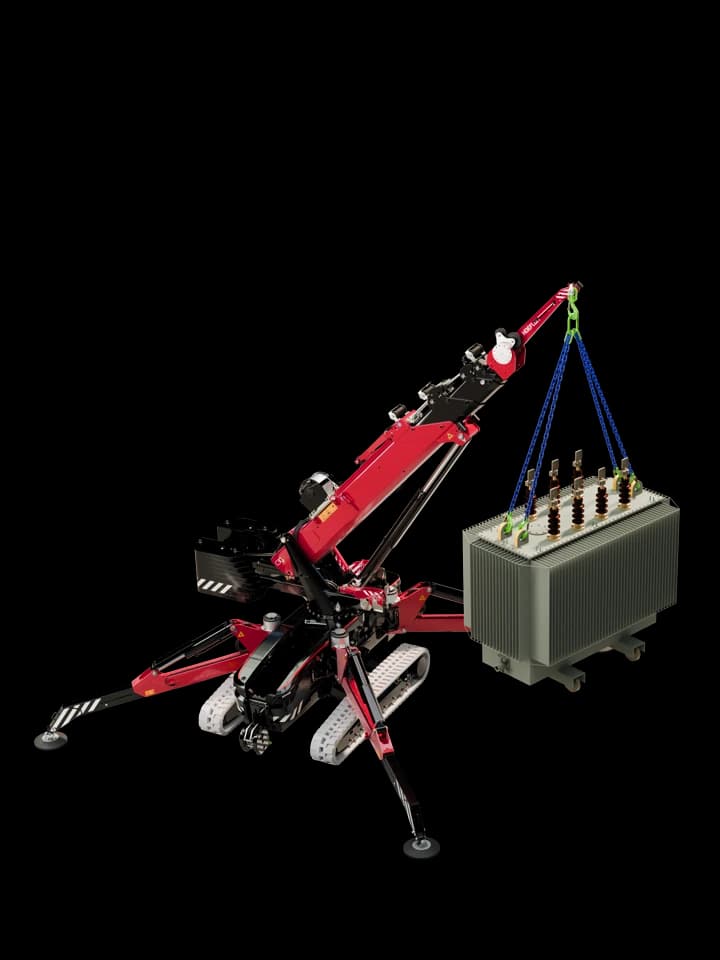

We are proud to present you a fully lithium powered pick & carry crane. Hoeflon is ready for the future. The C30e is a state of the art crane with an easy operation.  The possibilities are endless as the machine features highly intelligent software.  In this way, the crane operator can completely focus on his lifting work.

The C30e is a crane with continuous jack adjustment option. Each levelling jack calculates its position in order to determine the hoisting capacity. Its low centre of gravity and extending crawler undercarriage make it highly suitable for manoeuvring on a slope. The machine is fitted with sloping crawler supports for a large ground clearance.

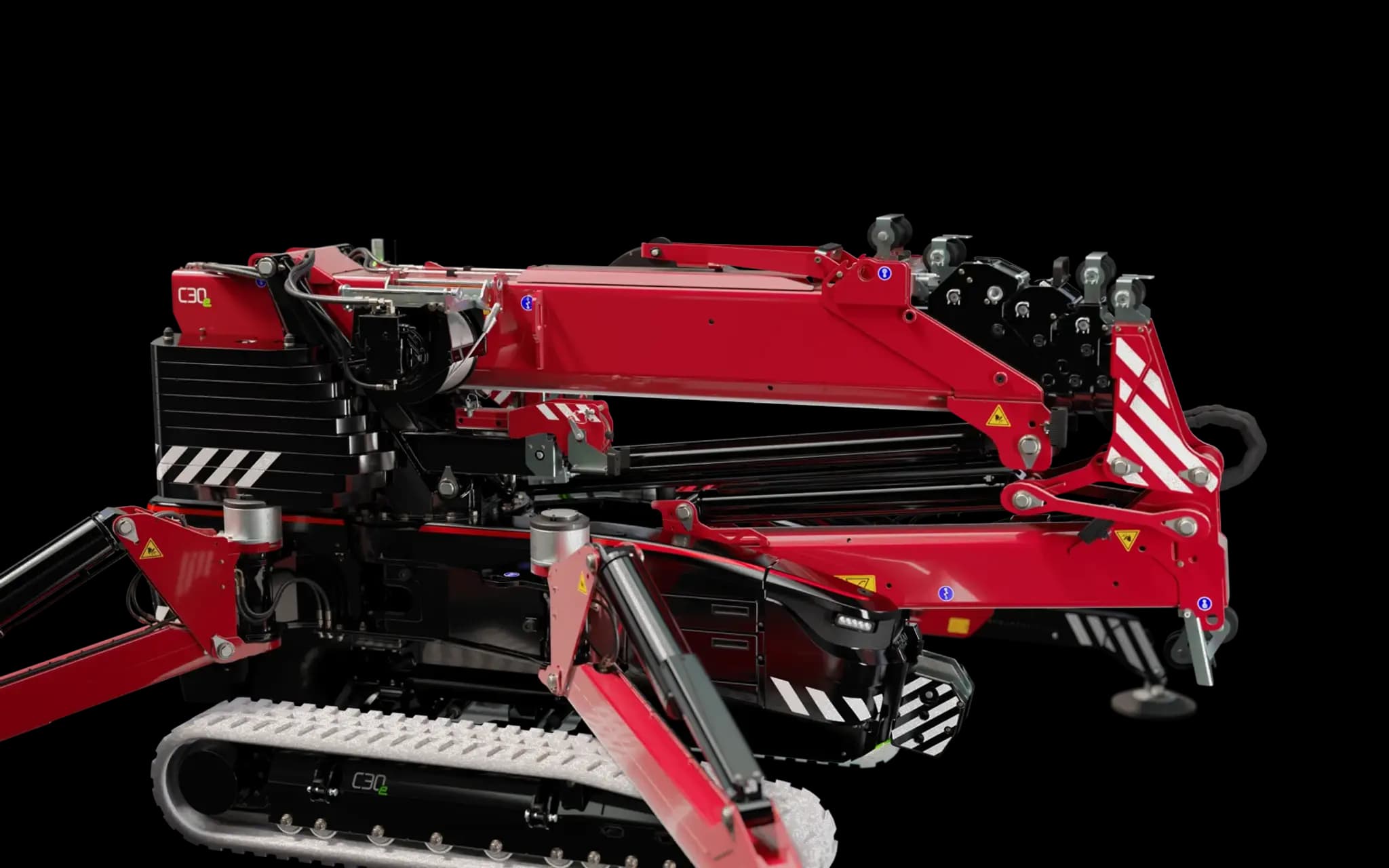

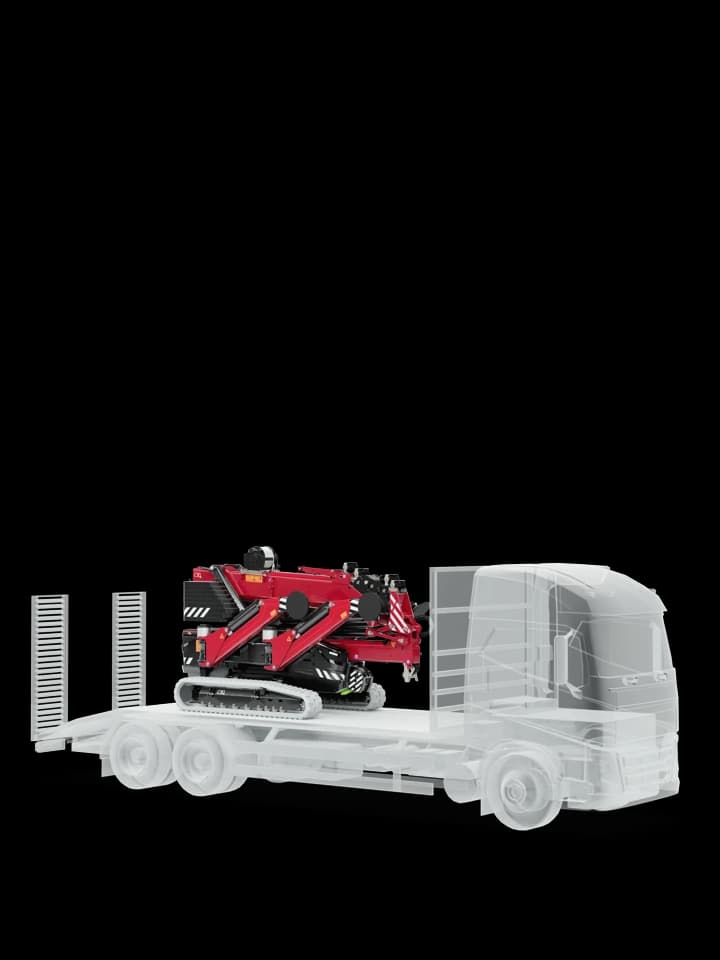

The C30e has a compact jib making it especially short in length. The transport height remains two metres as the fly jib fits in the centre of the machine.

This makes the C30e strong:

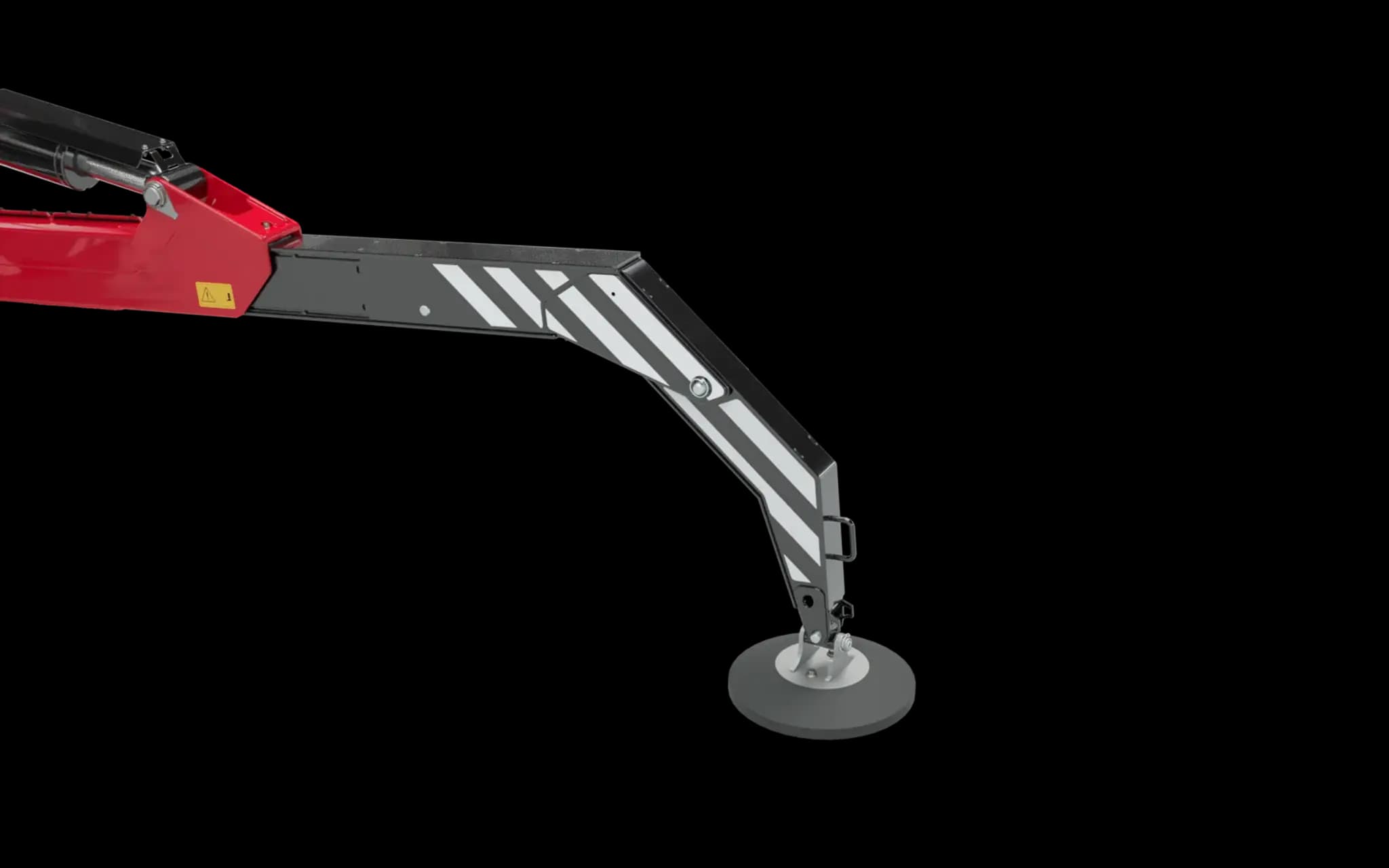

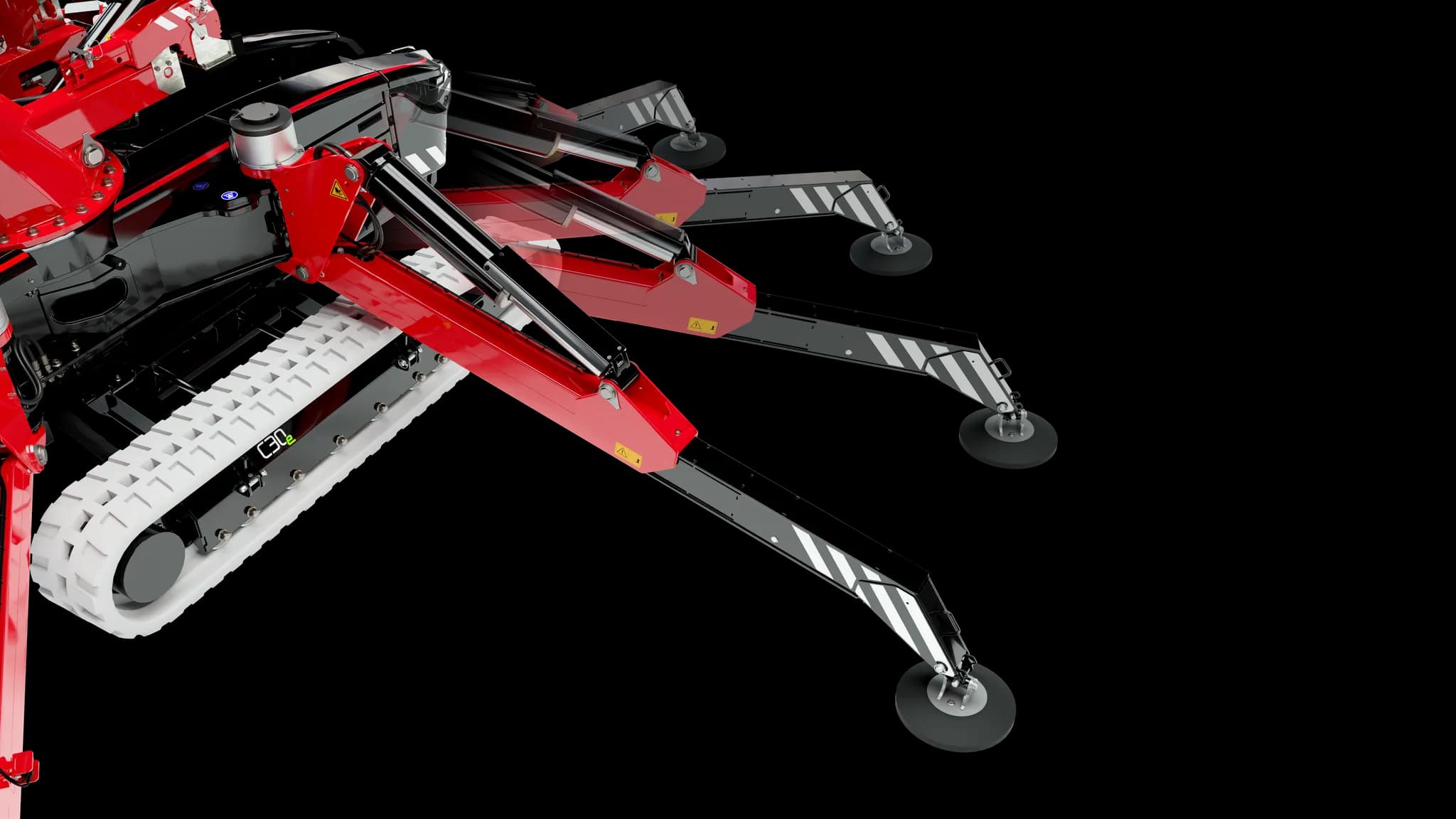

  • Stepless outrigger positioning
  • Variable extendable outriggers
  • Endless rotation
  • Fits through double door
  • Lithium crane

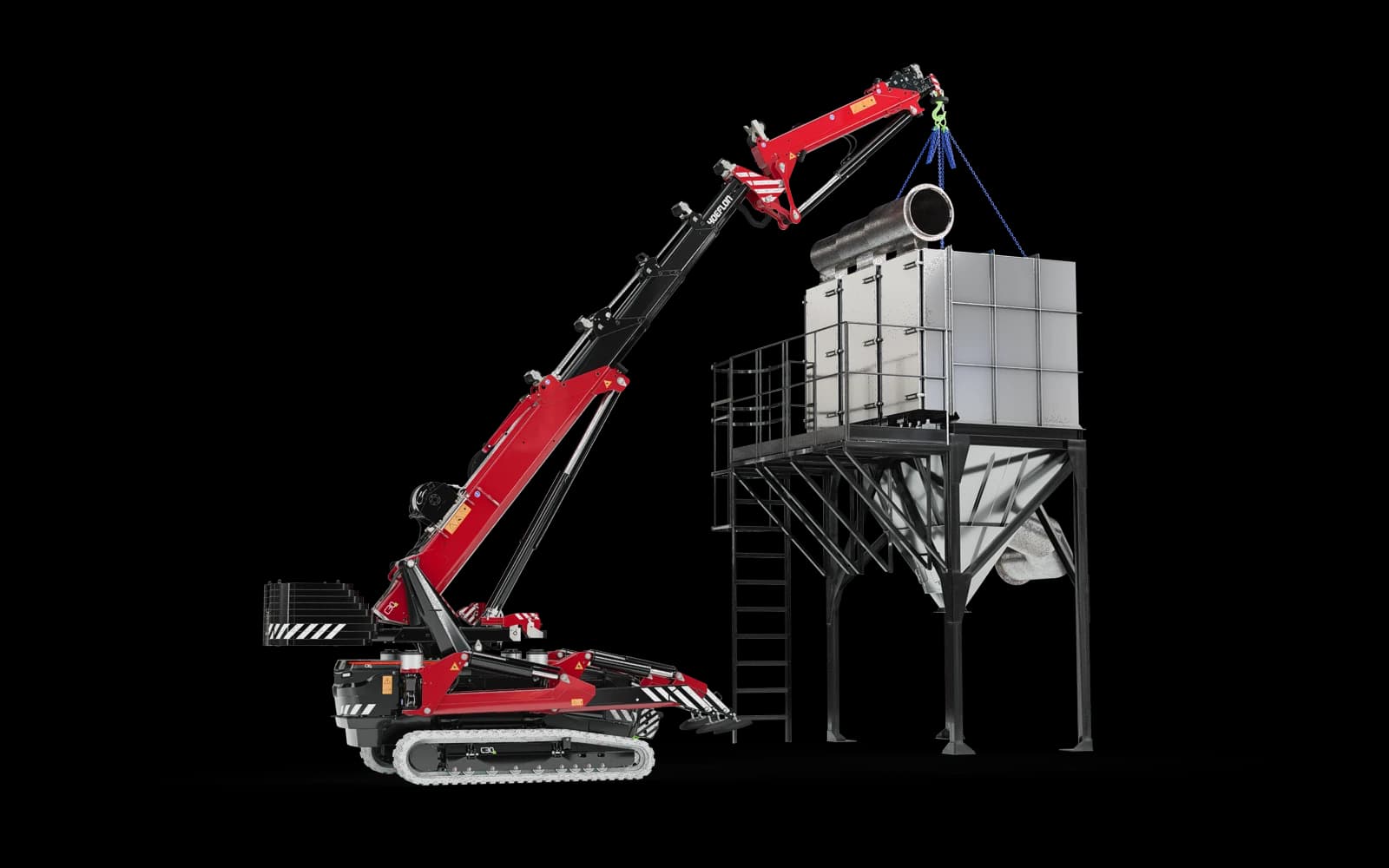

  • Driving with load
  • Simple control

Capacity

9.000 kg

Max. range

12,2m with fly-jib 20m

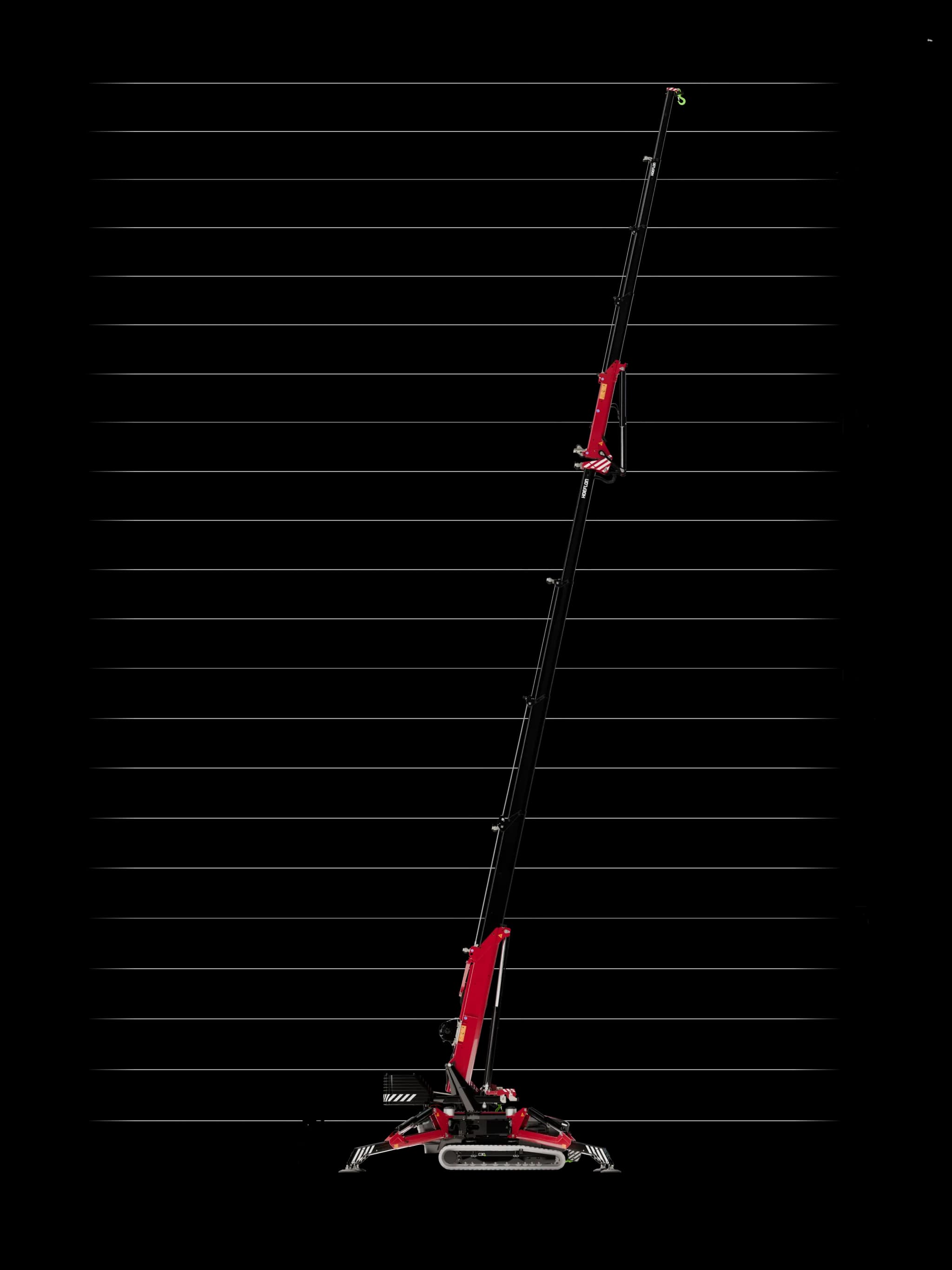

Max. hoisting heigt

14,5m with fly-jib 22m

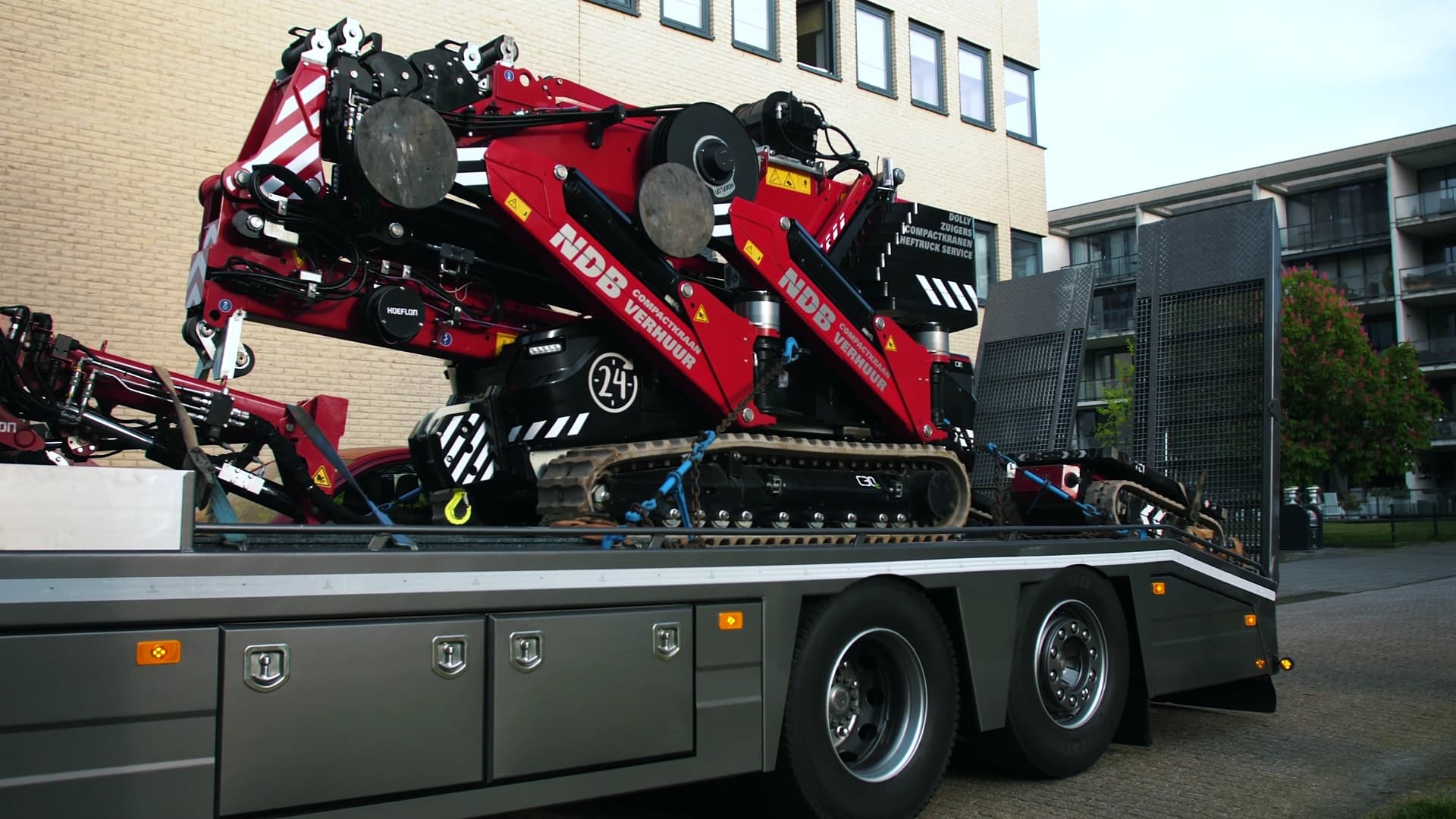

Transport dimensions LxWxH

3,85m x 1,2m x 2m

Totaal weight

8700kg

Weight without fly-jib

7950kg (750kg)

Weight without ballast

6350kg (2350kg)

Weight without ballast, zonder fly-jib

5600kg (2350kg + 750kg)

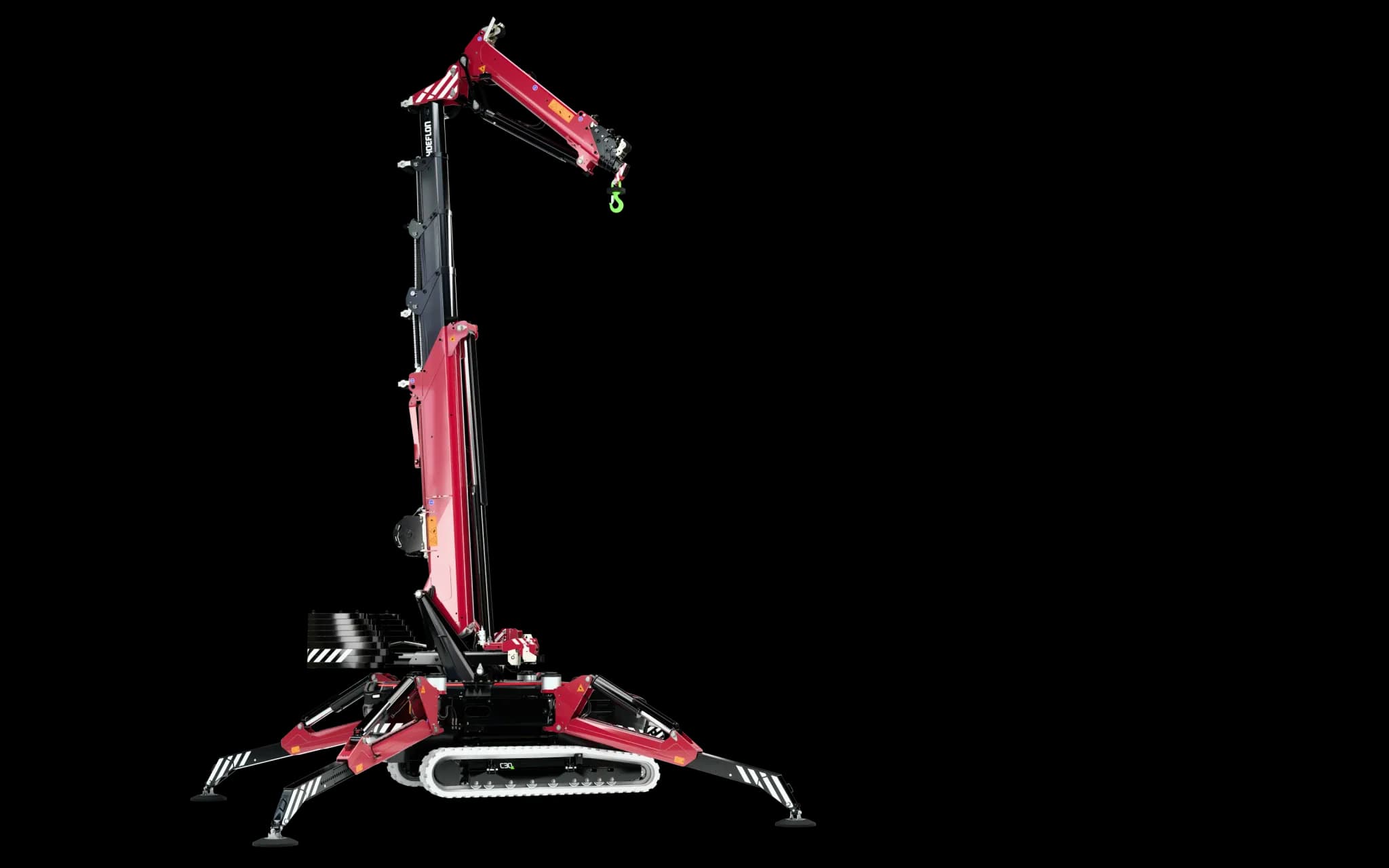

Jibb angle

85°

Swivel range

360°

Travel speed

1st gear: 0,75km/h

2nd gear: 1,5km/h

Drive system

Elekctric, lithium battery

Inclination angle

20°

Ground pressure

0,79kg/cm2



More information: brochure.



Electric motor

230v, 400v

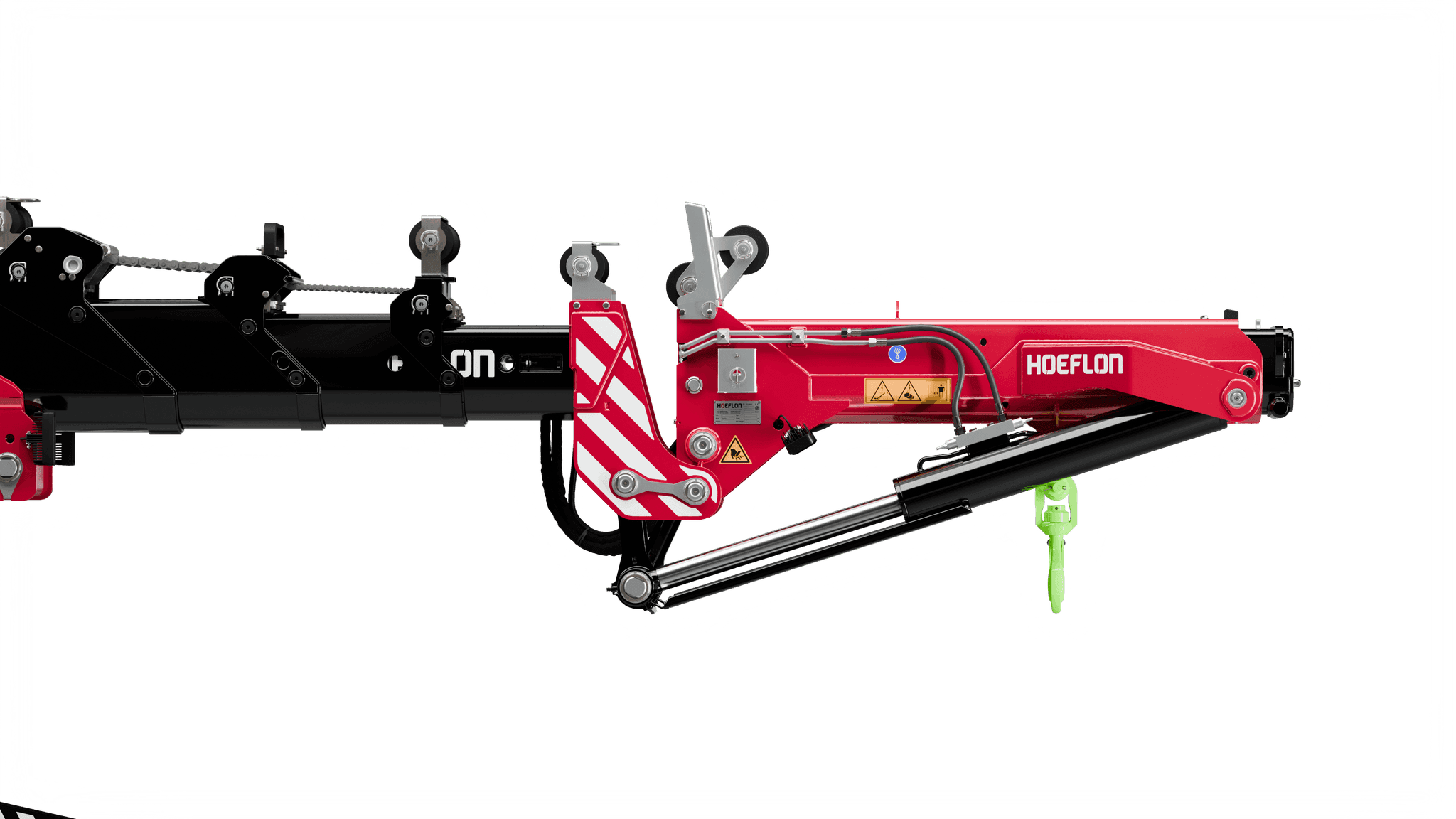

Fly jib length

7,5m

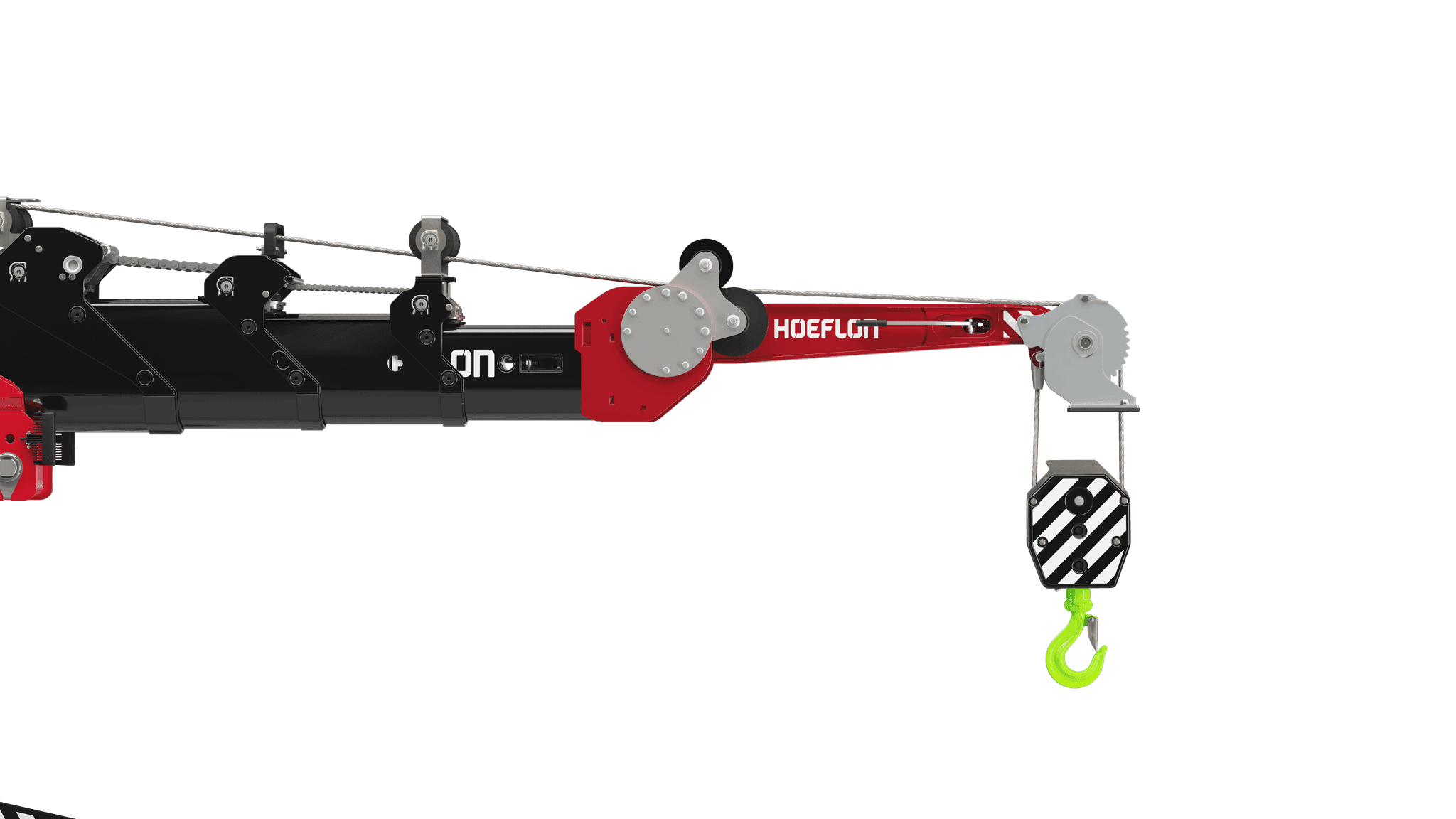

Hoisting winch

1000kg, 2000kg, 3000kg

Cable winch 40m lang
Hoisting speed with winch 20,8m/min
Extension ​30 graden instelbaar
Lighting

two LED lights on the front substructure,

two LED lights on the rear substructure

two LED lights on the main boom

two LED lights on the jib

Tracks

non marking

More information: brochure



Want to know more?

Then please contact us. Be sure to ask for the most recent information and price list! We will make sure you get the information you need.
