EspañolThe powerful all-rounder

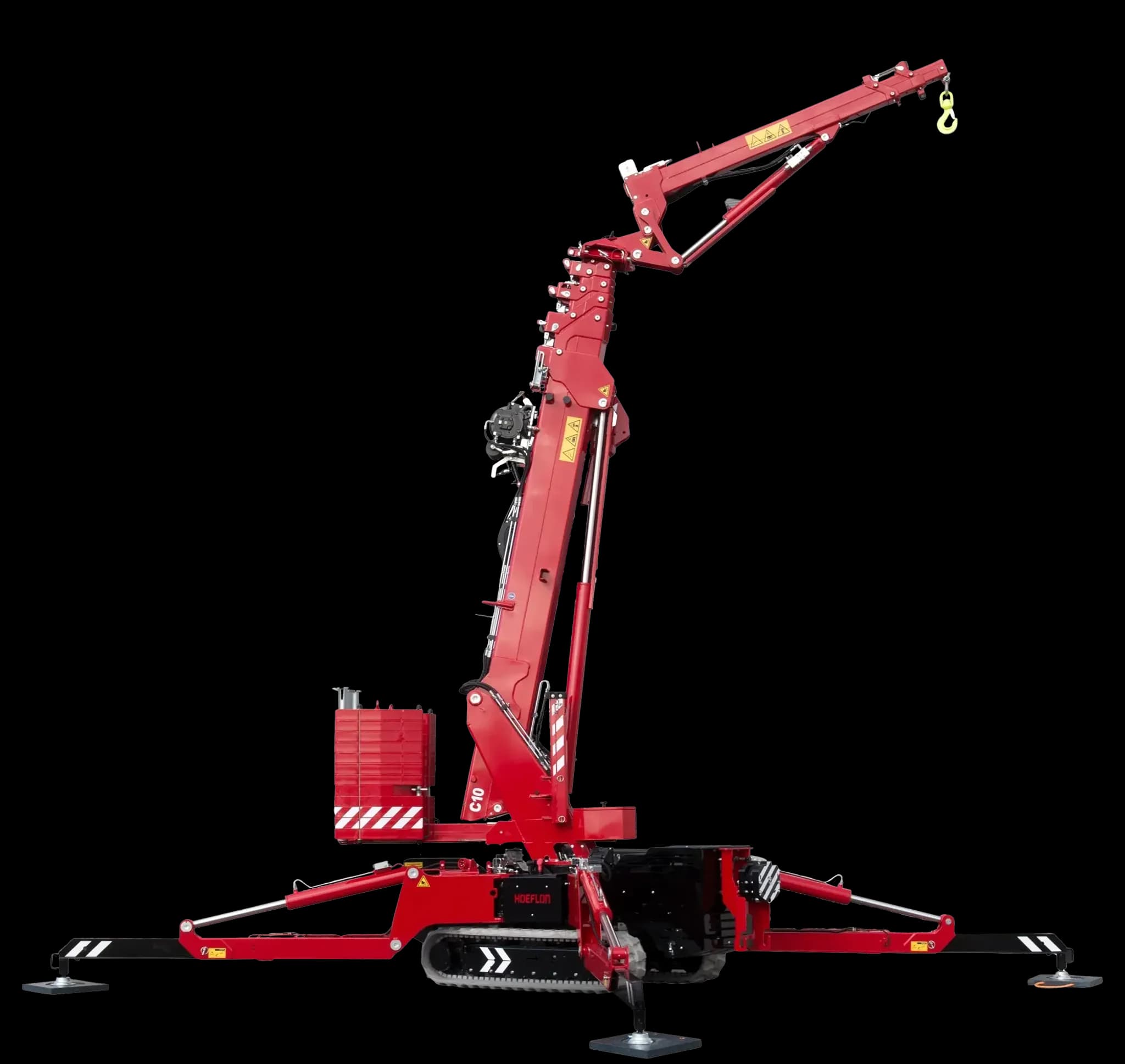

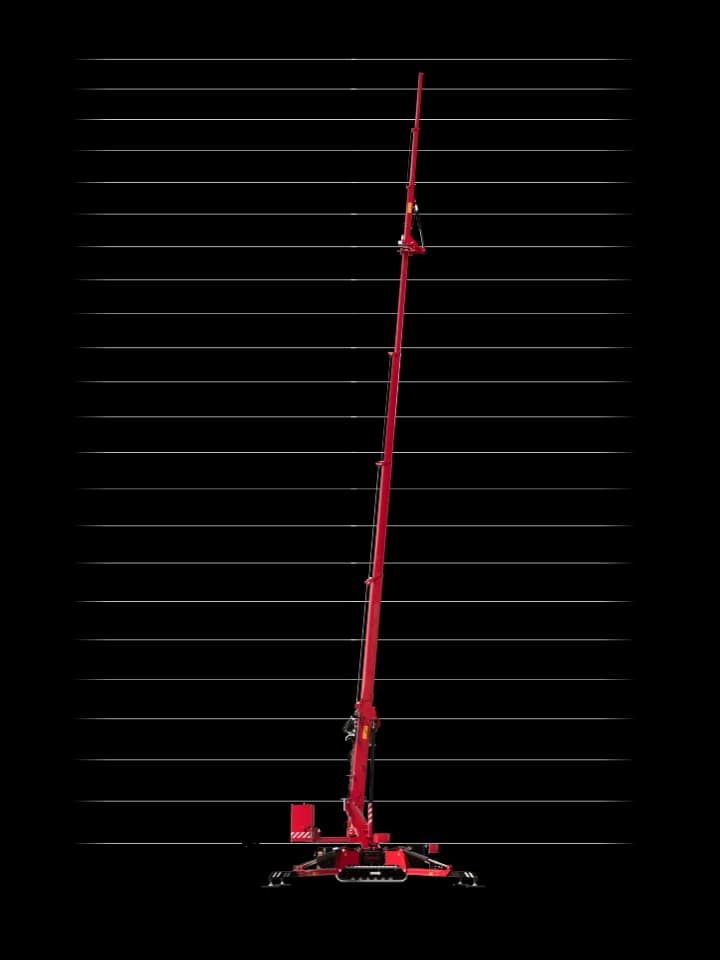

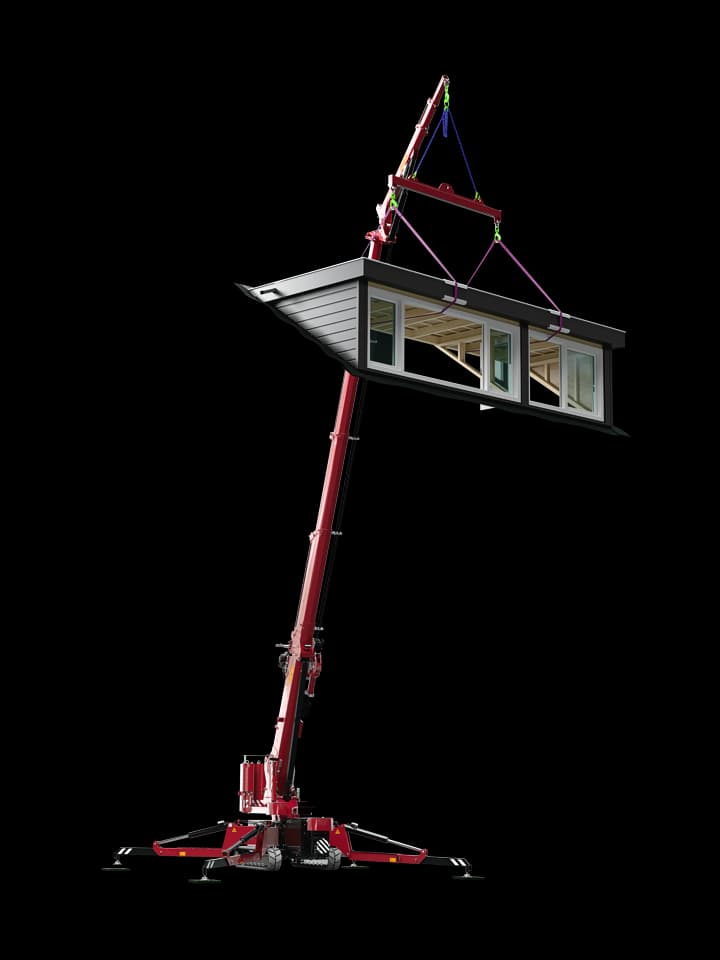

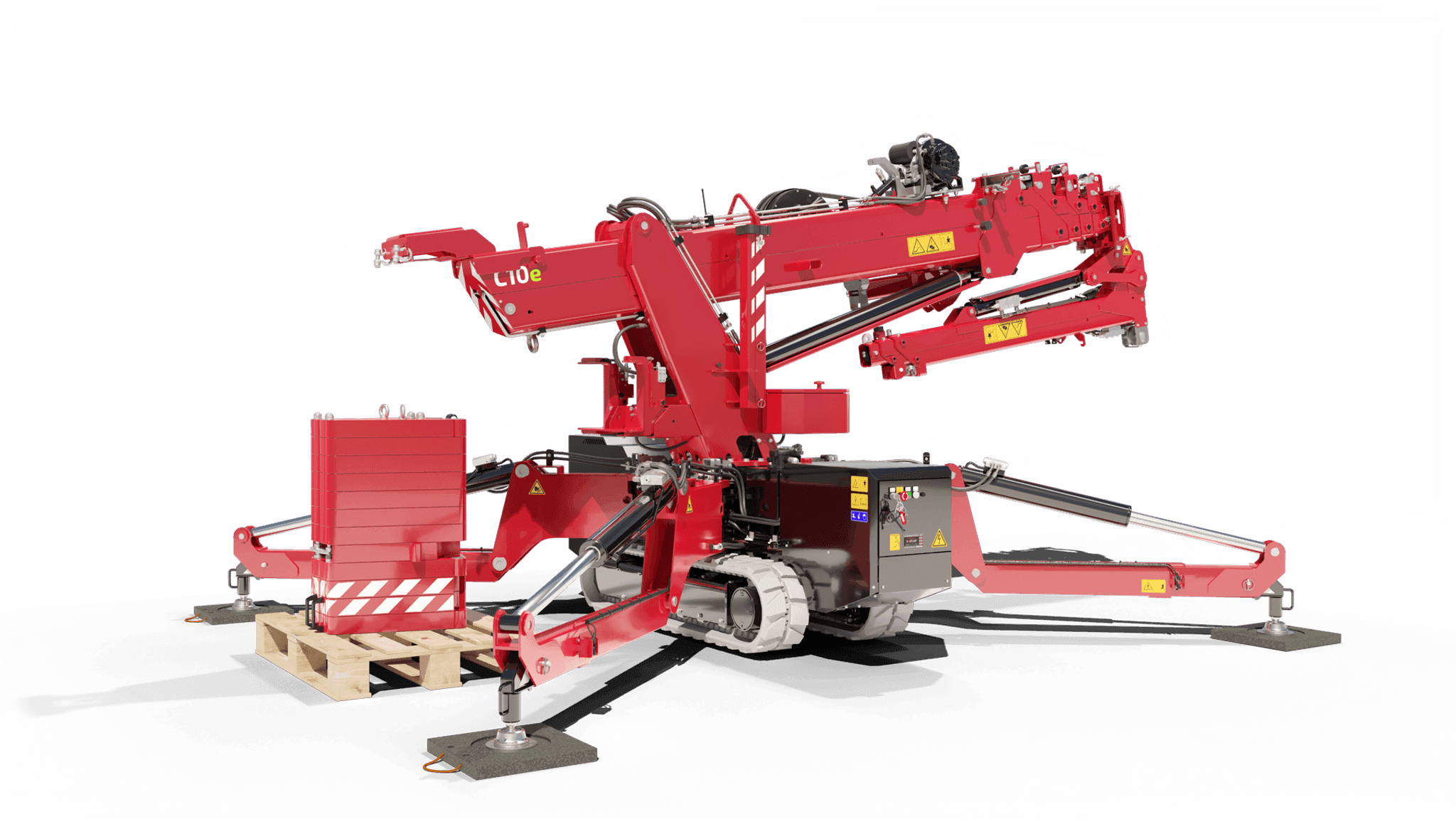

The minicrane C10e is our very strongest crane: this compact crane lifts up to 4 tonnes. And that’s despite the fact that its own weight is just 5 tonnes. You wouldn’t think it to look at it though: it’s slim enough to fit through any door.
| Capacity |
4000 kg |

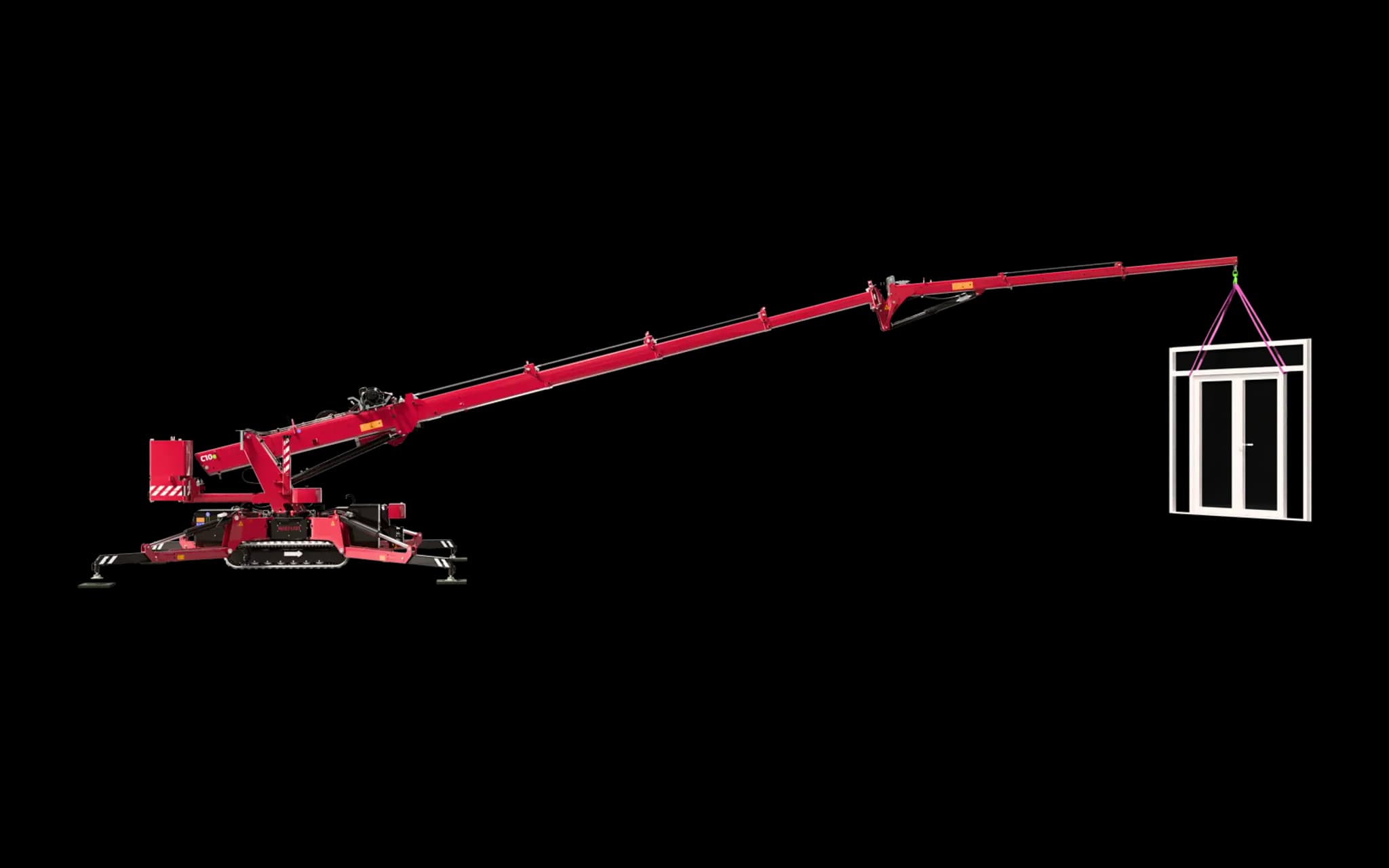

| Max. outreach |
13,7 m and 19,8 m with options |
|
Maximum hoisting height |
16,3 m and 22 m with options |
|
Dimensions L x W x H |
3,93 m x 0.8 m x 1.97 m |
| Dimensions including winch and jib |
4.15 m x 0.8 m x 2,07 m |
| Total weight |
4400 kg and 4700kg incl. options |
| Boom system |
Cylinder and chain system |
| Boom angle |
-5 – 83 degrees |
| Slewing |
360 degrees |
| Drive system |
via remote control: 1st gear: 1 km/h 2nd gear: 1,5 km/h |
|
Engine |
OX Power accu |
|
Incline angle |
20 degrees |
|
Ground pressure |
0.72kg/cm2 |
More information: brochure
| Electric motor |
400 V |
| Fly jib length |
5m |
|
Hoisting winch |
1000 kg, 2000 kg, 4000kg |
| Cable winch | 50 m long |
| Speed of hoisting with winch | 20,8m/min |
|
Crawler tracks |
non marking |

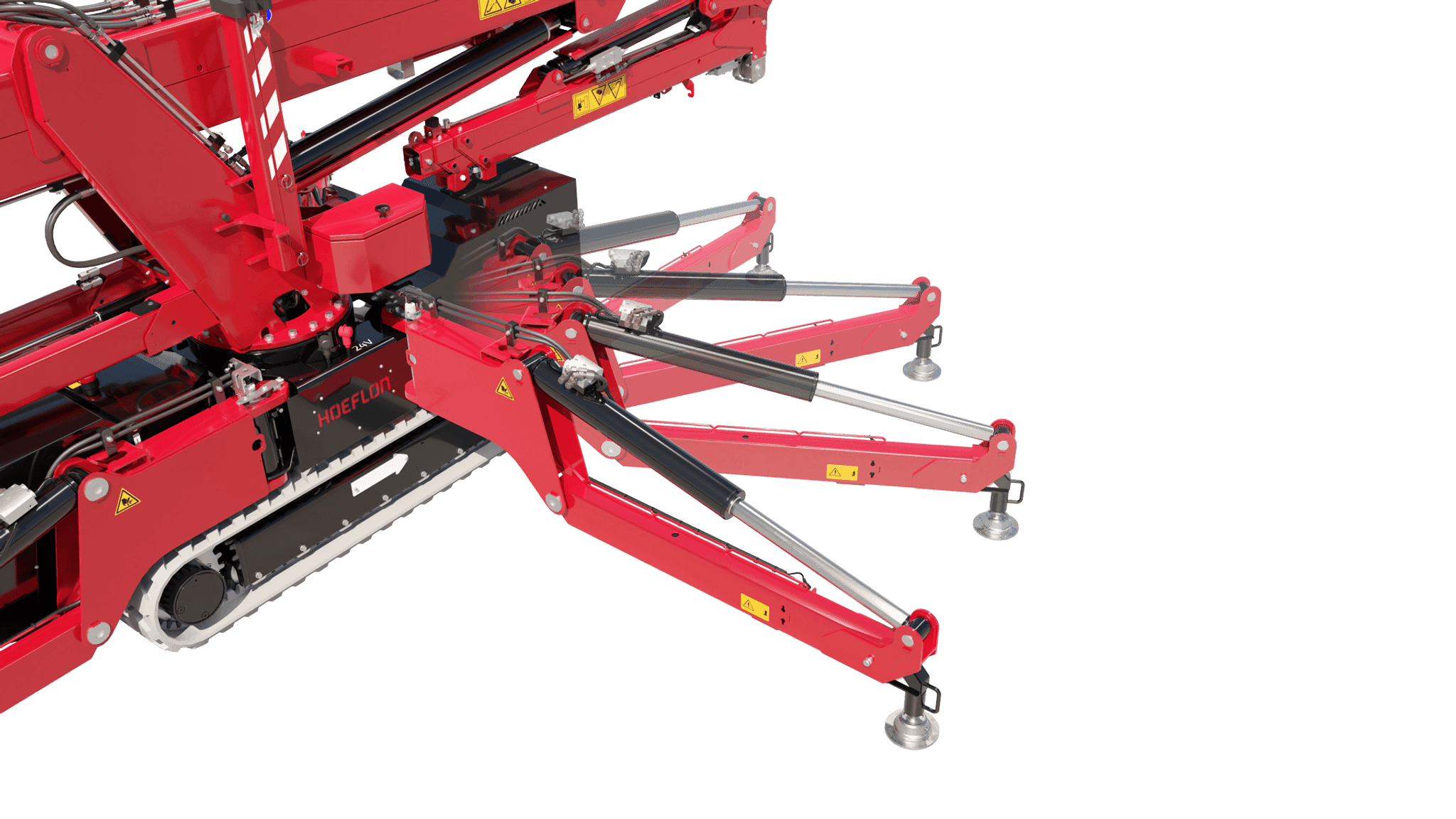

| Levelling jack monitoring |
5 positions |
| Hydraulic slewing |
Stepless |
More information: brochure
Want to know more?
Then please contact us. Be sure to ask for the most recent information and price list! We will make sure you get the information you need.
